EnVisionLED LED-WPUD-SC-3P80-TRI-BZ-PC - CIRCLE-Line: Semi-Circle Up/Down Wall Pack - 80/64/48W - Selectable CCT - 120-347V - Bronze

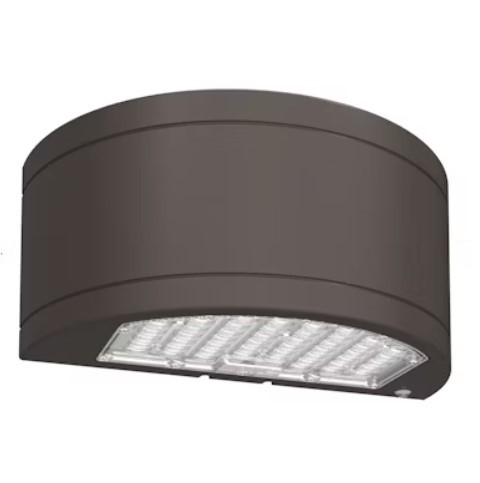

EnVisionLED wattage and CCT selectable slim cutoff wall pack
CUSTOMER REVIEWS




Download The Installation PDF



Download The Spec Sheet
Price: $225.00


Free Shipping
Qty:

Description Technical Specs Shipping Time

Part Number: LED-WPUD-SC-3P80-TRI-BZ-PC

0-10V/Dimmable

Selectable Wattage - 80/64/48w
Voltage - 120-347v
Selectable CCT - 30/40/50K
Lumens - 11,600/9,280/6.960lm
Beam Angle - Type III (Standard)
BUG - B3-U2-G2
Average Rated Life (L70) - 70,000 Hours
Finish - Bronze

Height - 6.49"
Width - 12.9"
Depth - 6.49"

  • EnVisionLED CIRCLE-Line: Semi-Circle Up/Down Wall Packs: Sturdy die-cast aluminum housing finished with corrosion free powder coat.
  • Full Cut-Off Dark Sky Compliant with Up light off, Up Light can be turned off, Instant-On to full brightness
  • Photocell is included with an on/off switch, Up Light: 20 Watts, Downlight: 80 Watts
  • Lens: Clear acrylic with optics, Five (5) 1/2" knockouts: One (1) on each side for convenient installation
  • Built-in 6Kv Surge protection, Bronze Finish (Custom Finishes available)
  • Mounts on to standard recessed junction box
  • UL Listed, DLC Listed, RoHS Compliant, Approved for CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Wet Location, Impact Rating: IK08
  • 5 year limited factory warranty
Features
  • Optional For Purchase Pre-Installed Factory Add-On's:

    90 Minute Emergency Battery Backup
    S-BMS-EXT-1: Bi-Level Motion + Daylight Sensor
    S-BMS-EXT-1-BT: Bi Level Motion + Daylight Sensor W/Bluetooth Control (ENVISION SMART APP)
    SG-20KV-UNV: 20KV Surge Protector
    Factory Installed Type IV: T4
    Factory Installed Type V: T5

    Call our Customer Service Line For Pricing/More Information: 877-235-0020. Prices are in addition to original product purchase price. Ask about additional lead times.
