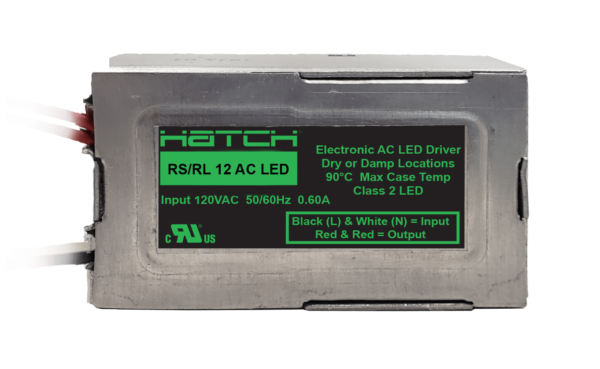

Hatch RL12-60M-LED 60W 12VAC Class 2 AC LED Driver

Part Number: RL12-60M-LED

The Hatch RL12-60M-LED is a compact AC LED (Class 2) driver designed for powering compatible AC LED or halogen loads. It supports multiple units per circuit, is suitable for dry and damp locations, and offers strong protection and reliable performance for demanding lighting applications.

Electrical Specifications

Driver Type: AC LED (Class 2)
Maximum Output Power: 60W
Input Voltage: 120 VAC ±10%
Input Frequency: 50/60 Hz
Output Voltage: 12 VAC
Max Output Current: 5.0A
Efficiency: 90%
Minimum Load: 2W (120V model)

Dimming: Wide dimming range; recommended ELV dimming (120V models only).
Note: 277V models are non-dimmable (see RL12-60M-LED-277 if needed).

Performance & Protection

• Suitable for dry and damp locations
• Withstanding voltage (input to output): 2kVAC
• Surge rating: NEMA SSL1-2010 non-roadway 2.5kV
• Operating temperature range: -20°C to 90°C (measured at Tcase)
• Suitable for AC LED or halogen loads
• Multiple units supported per circuit

Wiring Information

Input Leads: 6", Black (L) + White (N), 300V, 200°C, #18 AWG
Output Leads: 6", Red (+) + Red (-), 300V, 200°C, #18 AWG

Dimensions

Case Style: M (Side Lead)
Approx. Dimensions: 2.20" L × 1.23" W × 0.75" H

Approvals

• UL 8750 Recognized Component
• RoHS Compliant
