The

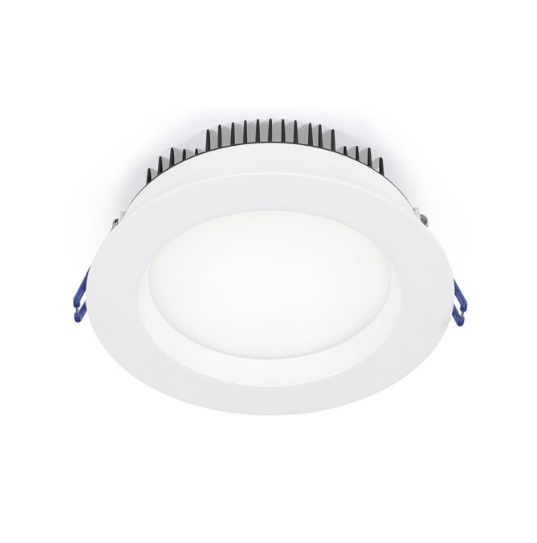

Lotus LL6RR-5CCT-WH is a 6" LED round plenum rated recessed downlight designed for quick and easy installation with an integral driver in the connection box for both new construction and remodel applications, this fixture gives you the options and flexibility you are looking for in one fixture. This Wet Location Rated fixture is commercial grade quality with an architectural design and can be installed indoors or outdoors.
Key Features
- 17W Round Plenum Rated Recessed LED
- Integral driver in the connection box - No junction box needed
- 2 1/4" Deep - Install where ceiling space is limited
- Armored Cable and Metal Connectors - Open Plenum Rated
- Type IC Rated - No Housing Required
Ideal Applications
- 6" Round Regressed LED
- Open Plenum Rated
- Insulated/Non-Insulated Ceilings, Wet and Damp Locations
- No Junction Box Needed
- Ceiling Clearance Required For Driver - 2 1/2"
Specifications
- Brand: Lotus Lighting
- Model: LL6RR-5CCT-Wh
- Technology: Plenum Rated/Regressed
- Application: Wet Location Rated
- Housing: Driver In Connection Box - No Junction Box Needed
- Voltage Rating: 120V
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
-
| -
- Yes/Triac
| -
-
-
| Cut Out | -
| 6" to 6 1/4" | -
-
-
- Item Type
| -
| 6" Round Round Regressed Open Plenum LED | -
-
-
| Beam Angle | 90° | -
-
-
| Manufacturer | Lotus LED Light | -
-
-
| Finish | -
| White | -
-
-
| Lumens | -
| 1,230LM/1,270LM/1,330LM/1,380LM/1,350LM | -
-
-
| Wattage | -
| 17 Watts | -
-
-
| Warranty | 5 Year Limited Factory Warranty | -
-
-
| CRI | -
| 90+ | -
-
-
| Selectable CCT | -
| 2700K/3000K/3500K/4000K/5000K | -
-
-
| Voltage | -
| 120V | -
-
-
-
|
|
|
|
