The

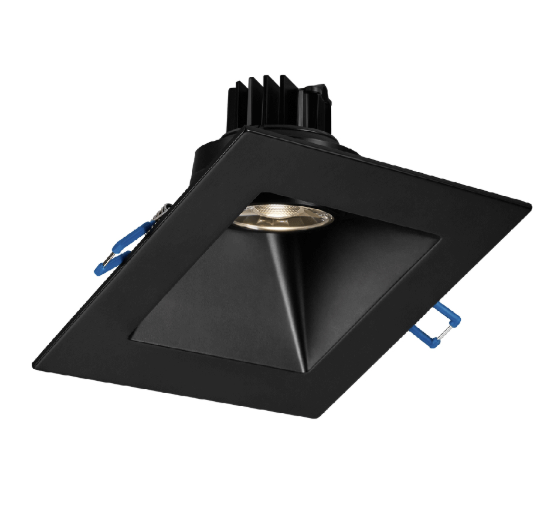

Lotus LSG3-50K-5SSL-BK is a 5" LED square sloped regressed gimbal downlight designed for quick and easy installation with an integral driver in the connection box for both new construction and remodel applications, this fixture gives you the options, flexibility, and adjustability you are looking for in one fixture. This sloped trim fixture is commercial grade quality with an architectural design and can be installed in a variety of locations.
Key Features
- 7.5W Square Sloped Regressed Gimbal LED
- Integral driver in the connection box - No junction box needed
- 3" Deep - Install where ceiling space is limited
- Cut hole in ceiling and snap fixture in opening
- Type IC Rated - No Housing Required
Ideal Applications
- 3o Degree Sloped Trim for Wall Washing and Ceilings from 5 to 55 Degrees
- With Attached Spring Clips
- Gimbal Yet Air-Tight, Without Housing Needed
- No Junction Box Needed
- Ceiling Clearance Required - 3"
Specifications
- Brand: Lotus Lighting
- Model: LSG3-50K-5SSL-BK
- Technology: Square Sloped Regressed Gimbal
- Application: 30 Degree Sloped Ceilings
- Housing: Driver In Connection Box - No Junction Box Needed
- Voltage Rating: 120V
