The

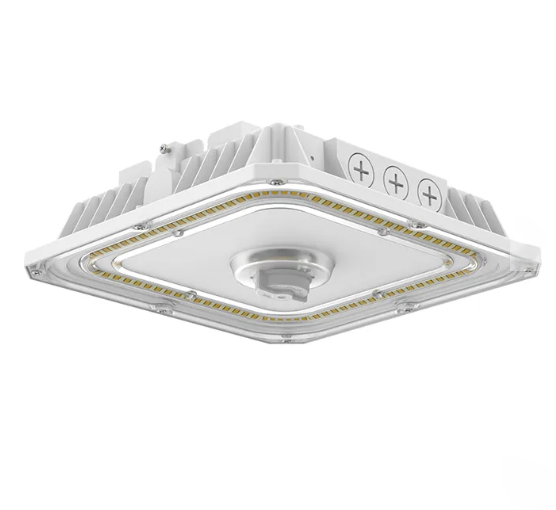

NaturaLED 9743 Slim Canopy features an IP65-rated, low-profile design with durable die-cast aluminum housing and a shatter-resistant polycarbonate prismatic lens. Blending clean aesthetics with reliable performance, these fixtures offer selectable wattages and color temperatures to support a wide range of lighting applications. Designed for maximum flexibility, the SCM is Z10-Control ready, allows for easy integration with motion or photocell sensors as needed. Installation options includes direct surface mounting on ceilings or walls, as well as pendant mounting using a 3/4" NPT thread, ensuring compatibility with various junction box types.
Key Features
- Selectable Wattage and CCT Slim Canopy Fixture
- Fast and Easy to Install - Save on Labor
- Surge protection: 6kv
- 1/2" Conduit on 3-sides
- 0-10V Dimmable
Ideal Applications
- Warehouses
- Parking Garages
- Offices
- Factories
- Hospitals and Hotels
Specifications
- Brand: NaturaLED
- Model: 9743 - SCM10/100S/8C3/WH-Z10
- Technology: Selectable Wattage and Color Temperatures
- Application: Surface/Ceiling Mount
- Housing: Die-cast aluminum
- Rated Locations: IP 65 Rated
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
| Selectable Wattage | -
| 40 Watts/60 Watts/80 Watts/100 Watts | -
-
-
Equivalent-
| -
| 100-400 Watts | -
-
-
Voltage-
| -
- 120-277V
| -
-
-
| CRI | -
>80-
| -
-
-
| Selectable Color Temperature | -
| 3000K/4000K/5000K | -
-
-
| Lumens | -
| 6,000LM/9,000LM/12,000LM/15,754LM | -
-
-
| Dimmable | -
| YES/0-10V | -
-
-
| Finish | -
| White | -
-
-
| Beam Angle | -
125°
| -
-
-
| Height | -
| 2.83" (72mm) | -
-
-
| Length x Width | 10.06" (255.5mm) x 10.06" (255.5mm) | -
-
-
| Approvals | -
| DLC Premium, IP65 Rated, ETL/cETL Listed, RoHS Compliant, FCC, LM79, LM80 | -
-
-
| Material | -
| Die-Cast Aluminum | -
-
-
- Warranty
-
| -
- 5 Year Limited Factory
| -
-
-
- Manufacturer
| -
| NaturaLED | -
-
-
| Lens | -
| Polycarbonate | -
-
-
| Surge Protection | -
| 6KV | -
-
-
| Operating Temperature | -
-40°F To 122°F
|
|
|
|
|
