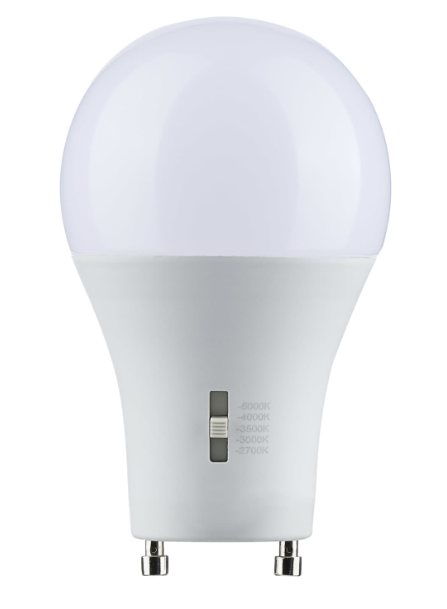

The Satco S11796 is a dependable
14-watt LED A19 lamp engineered to replace traditional incandescent and halogen A19 bulbs while delivering long life and energy savings. Designed with a Bi Pin GU24 base and selectable color temperature, this LED lamp provides flexibility and a wide range of illumination choices for a variety of residential and commercial lighting applications.
Performance & Light Output
This efficient LED lamp uses just 14 watts of power while producing approximately 1600 lumens of light, making it an energy-saving alternative to a 100-watt incandescent or halogen. Its 220° beam angle offers a balanced flood distribution, and the selectable color temperature make this lamp ideal for all types of lighting fixtures.
Key Features
- 14W LED replaces 100W A19 lamp
- Selectable color temperature
- GU24 bi-pin base for easy installation
- 220° beam angle for general flood lighting
- Dimmable
- Rated life up to 25,000 hours
- cULus Listed, RoHS compliant, CA T20 Compliant
- Suitable for enclosed and Damp Locations
Applications
- Residential and Commercial
- Accent lighting
- Retail and display lighting
- General indoor lighting where 100W A19 lamps are used
-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Dimmable
| -
| YES | -
-
-
| Approvals | -
| FCC Compliant, Damp Locations, RoHS Compliant, cULus Certified, cULus Listed, Enclosed Rated, CA T20 Compliant | -
-
-
- Item Style
| -
| LED A19 | -
-
-
- Manufacturer
| -
| SATCO|NUVO | -
-
-
- Warranty
| -
| 5 Year Limited Factory Warranty | -
-
-
- Average Life(L70)
| -
- 25,000 Hours
| -
-
-
- Application
| -
| Residential, Decorative, Recessed Downlight, Hospitality Lighting, Track, Accent, Retail, Restaurant | -
-
-
| T20 Status | -
| Compliant | -
-
-
- Bulb Base
| -
| Bi Pin GU24 | -
-
-
| Beam Angle | -
- 220°
| -
-
-
- Voltage Type
| -
- 120 Volt
| -
-
-
- Color
| -
- White
-
| -
-
-
| Maximum Overall Length (MOL) | -
| 4.29" | -
-
-
| Selectable CCT | -
- 2700K/3000K/3500K/4000K/5000K
| -
-
-
- Wattage
| -
| 14 Watts | -
-
-
- Color Rendering Index (CRI)
| -
| 90+ | -
-
-
- Max Overall Diameter (MOD)
| -
| 2.36" | -
-
-
| Lumens | -
| 1,600LM | -
-
-
-
|
|
|
|
 |
|
 |
|
