Part Number: EL416CT5W
Compact 4" LED adjustable gimbal insert in white finish. Designed for use in dedicated 4" LED housings (new construction, remodel or retrofit). With selectable color temperature and high quality optics, this insert brings precision lighting to accent, gallery or general purpose installations.
Wattage: 9W typical
Lumens: Approx. 700 lm

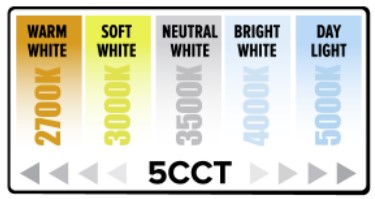

Color Temperatures: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
Finish: White (W)
Adjustability: 25° tilt & 358° rotation
Beam Angle: 60°
Dimming: Compatible with Triac/ELV dimmers (120 V input)
- Fits ELCO & other 4" dedicated LED housings (IC and non-IC)
- High CRI (90+ or 93+) and rated for 50,000 hours L70 life
- Selectable 5-CCT switch for flexible color temperature options (2700K-5000K)
- Energy Star certified and meets California Title 24 / JA8 when used properly
- Die-cast construction for durability and better heat dissipation
Why Choose the ELCO EL416CT5W?
- Color-select flexibility for changing aesthetics or multi-use spaces
- Precision adjustable gimbal gives full control of light direction
- Low wattage, high output (9W ~ 700 lm) helps reduce energy cost
- White finish blends seamlessly into most ceilings
- Designed for retrofit or new build – a versatile lighting solution
FAQ
Q: What housings can this insert fit?
A: It fits ELCO 4″ dedicated LED housings and many compatible models (IC or non-IC rated).
Q: Is the color temperature adjustable?
A: Yes. It includes a built-in switch to select from 2700K, 3000K, 3500K, 4000K, or 5000K.
Q: Can I dim it?
A: Yes. It’s compatible with Triac/ELV dimmers on 120 V circuits.

-
-
-
-
-
- Tech Specs
-
| -
-
-
|
-
-
-
| -
-
| -
-
-
- Item Type
| LED Adjustable Gimbal Downlight | -
-
-
- Equivalent Wattage
-
| -
- 65 Watts
-
| -
-
-
- Manufacturer
-
| -
- ELCO Lighting
| -
-
-
- Warranty
-
| -
- 5-year Limited
-
| -
-
-
| Selectable CCT | -
| 2700K, 3000K, 3500K. 4000K, 5000K | -
-
-
- Input Voltage
-
| -
- 120V
-
| -
-
-
- Power Factor
-
| -
- >0.90
-
| -
-
-
| Tilt/Rotation | -
- 25°/358°
| -
-
-
- Depth
-
| -
- 3 3/8"
-
| -
-
-
Outside Trim Diameter-
| -
- 5.0"
-
| -
-
-
| Beam Angle | -
60°
| -
-
-
-
|
|
|
|
