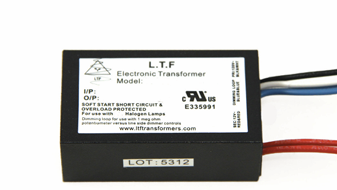

LTF TA60WA12LED - Electronic Transformers - 60W - 12V - No-Load Technology - Class 2

The LTF TA60WA12LED is a no-load electronic transformer designed to deliver reliable 12 V power for low voltage lighting systems up to 60 W. Utilizing advanced no-load technology, it operates without requiring a minimum load, making it suitable for modern AC LED, halogen, and Incandescent Lamps. Its isolated Class 2 output conforms to NEC and UL safety standards, and it incorporates protective features including short circuit, overload, and thermal protection, as well as a soft-start circuit for extended component life.

This transformer supports ELV dimming offering flexible control for dimmable LED installations. It's compact, low-profile design allows easy integration into remote enclosures or existing electrical setups. The TA60WA12LED is ideal for residential, commercial, or landscape lighting projects that demand efficient and dimmable low-voltage power.

Compatible with LED, Incandescent, and Halogen lamps, the TA60WA12LED is backed by a 3-5 Year Limited Manufacturer Warranty.

Specifications

• Efficiency: >85%
• Power Factor: >98%
• Protection: Input/Output
• Input Current: 2.5 A
• Input Voltage: 120V AC 50/60Hz
• Output Voltage: 12V AC

Fixture Dimensions

• Length: 2.224"
• Height: 0.826"

Features

• No Load technology, works with both Halogen and LED AC loads
• Dimmable, Soft Start
• Isolated output power per NEC and UL safety requirements
• UL recognized/listed Class 2 power supply, meets UL 2108 requirements
• Auto-reset; short circuit, overload, and thermal protection
• Low profile, small compact design to fit in most enclosures, soft start
