DESCRIPTION
Dimmable

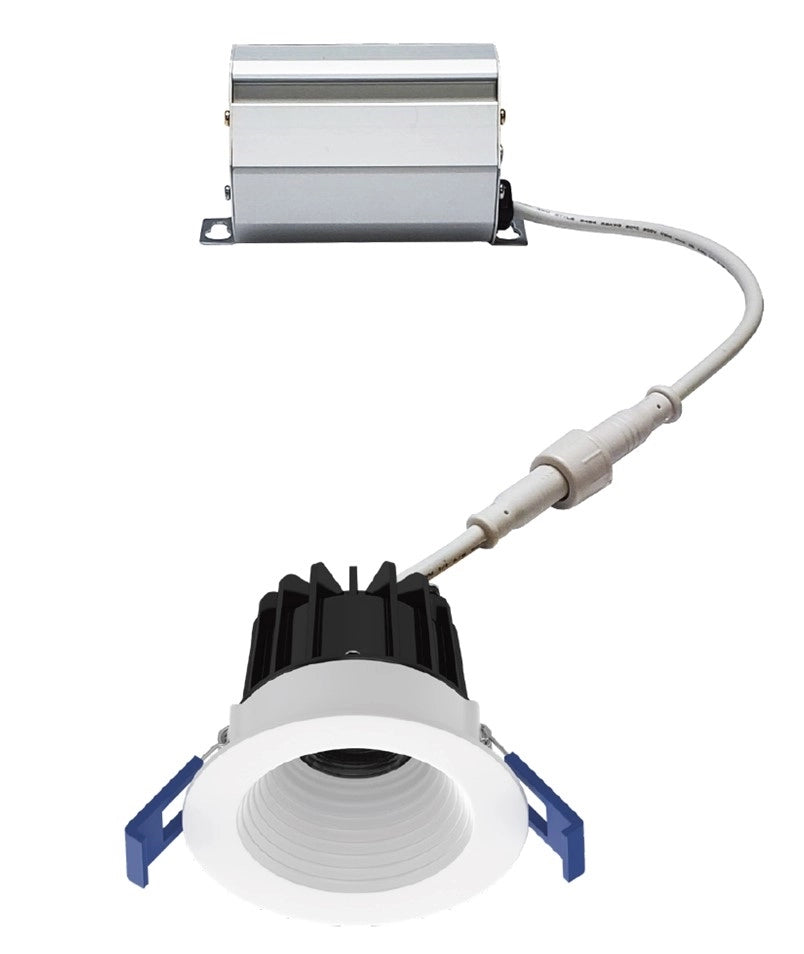

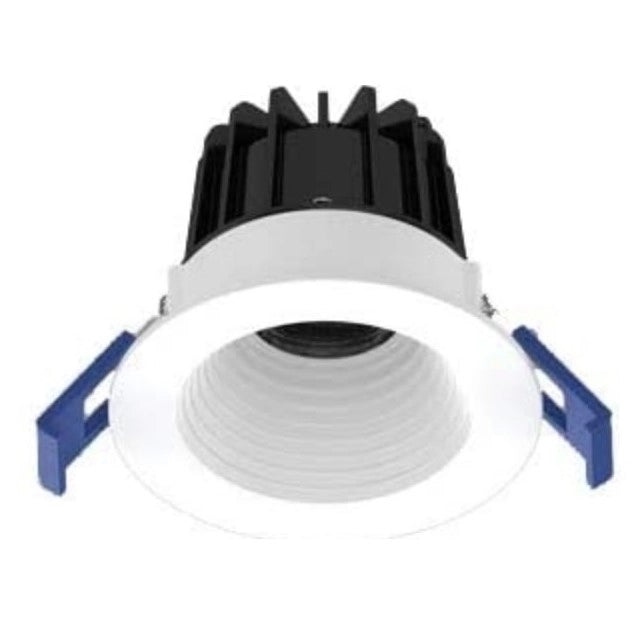

The Elite 2" round LED Baffle luminaire engineered for new construction, remodel or retrofit to accommodate insulated or dropped ceilings. Remote driver allows easy installation and maintenance. Small aperture and shallow depth are ideal for unlimited applications.
- IC-RATED and Air Tight ready. May be in direct contact with insulation
- Wattage - 14w
- Finish - White
- Lumens - 1000
- Color Temp - 4000K
- Beam Angle - 36°
- CRI: 90
- DIMMING: DIMTR (Triac) - down to 5%
- LIFETIME: L70 at 50,000 hours
- Aluminum die-cast body and trim
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span><br />
<ul style="background-color: rgb(255, 255, 255);">
<li><span style="letter-spacing: 0px;">Cast Aluminum construction with Powder Coated finish</span></li>
<li>Long life LEDs up to 50,000 hours at 70% lumen maintenance</li>
<li>Save 75% compared to incandescent sources</li>
<li><span style="letter-spacing: 0px;">Tested in accordance with IES LM79 & LM80, TM-30 and TM-21</span></li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>ETL classified</li>
<li>Energy Star qualified</li>
<li>Meets state of CA Title 24 requirements</li>
<li>Damp & wet location approved</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>14 Watts</li>
<li>1,000 Lumens</li>
<li>36 Degree beam angle</li>
<li>>90 CRI</li>
</ul>
<ul style="background-color: rgb(255, 255, 255);">
</ul>
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
Lumens</td>
<td>
Nominal - 1000 | Delivered Lumens 1158</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes - Triac</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>
Recessed Lighting LED Retrofit Trim
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>
Recessed, Smooth
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
Elite Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty
</td>
<td>
3 Year Factory Warranty (limited)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>
White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Power Factor
</td>
<td>
>90
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Input Frequency
</td>
<td>
60Hz
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>

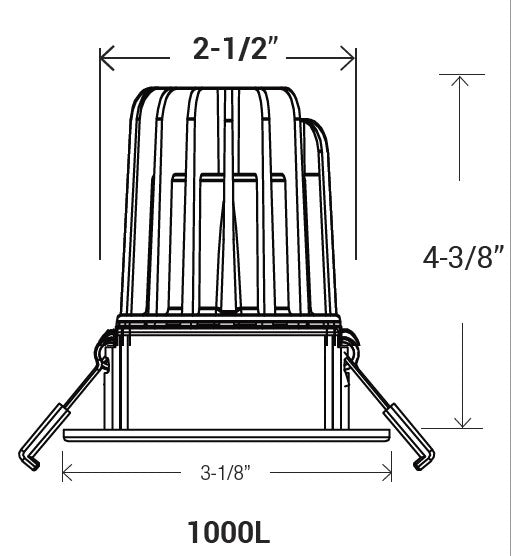

Depth
</td>
<td>
4-3/8"
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Diameter
</td>
<td>ID - 2-1/2" - OD - 3-1/8"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Color Temperature
</td>
<td>4000K
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle
</td>
<td>
36 Degree
</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
