MORE ABOUT THIS ITEM
DESCRIPTION

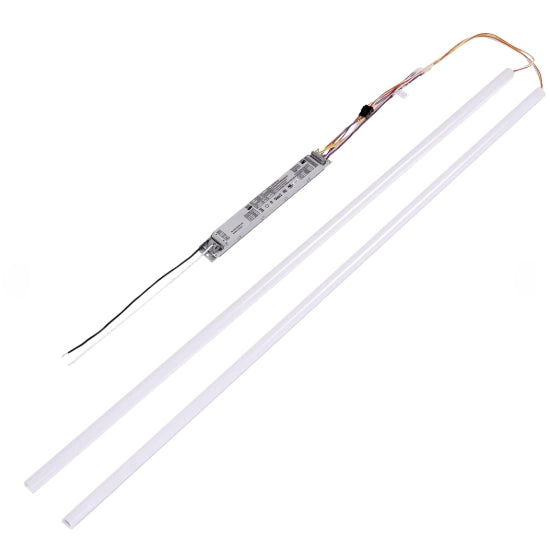

EiKO 16093 Magnetic Retrofit Kit is a high-performance LED retrofit system engineered for fast, simple upgrades of commercial and retail lighting, without full fixture replacement or ceiling disruption. Designed for rapid installation, MRK securely mounts into existing troffers, strips, and wraps with powerful magnets, cutting labor time dramatically and minimizing business interruption.
The 16093 has an average rated life of 50,000 hours and installs in existing fixtures. Magnetic application makes it easy to retrofit a wide variety of fixtures, each pack includes two LED strips, driver, and all connector accessories. Installers do not need above ceiling access to install and the MRK is designed to work with occupancy or daylight sensors (sold separately) supporting 0-10V dimming control signals.
Key Features
- Magnetic LED Retrofit Kit
- Does not require above ceiling access to install
- Selectable Wattage/CCT
- Includes two LED strips, driver, and all connector accessories

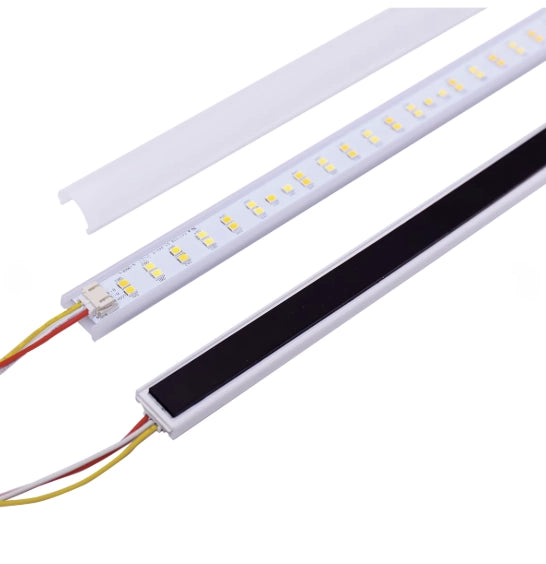

- Aluminum with frosted PC lens construction
- Long 50,000 hour rated life @ L70
- Magnetic application makes it easy to retrofit a wide variety of fixtures
Specifications
- Manufacturer: EiKO
- Part Number: 16093
- Model: MRK-22PS25-8FCCT-HDIM
- Selectable Wattage: 25/20/15W
- Voltage: 120-347V
- Lumens: 3,625/2,900/2,175 Lumens
- Selectable CCT: 3500K/4000K/5000K
- CRI: >80
- Efficacy Up To: 145LPW
- Lens Type: Polycarbonate
- Dimming: 0-10V Dimming
- Rated Life: 50,000 Hours
- Manufacturer Warranty: 5 Year Limited Factory
- Dimensions: 2 Strips X 2'
TECHNICAL SPECIFICATIONS
<br />
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Voltage Rating
</td>
<td width="72%">
120-347V</td>
</tr>
<tr bgcolor="#fefefe">
<td>Efficacy Up To</td>
<td>145 LPW</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable Wattage</td>
<td>25 Watts/20 Watts/15 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>Dimensions</td>
<td>2 Strips X 2'</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Lumens
</td>
<td>3,625LM/2,900LM/2,175LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable CCT</td><td>3500K/4000K/5000K</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty</td>
<td>5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Rated Life(L70)</td>
<td>
50,000 Hours
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Dimming</td>
<td>YES/0-10V/Dimmable</td>
</tr>
<tr bgcolor="#fefefe">
<td>CRI</td>
<td>>80</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Manufacturer</td>
<td>EiKO Lighting</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
