DESCRIPTION

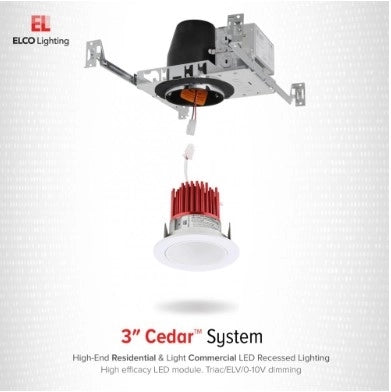

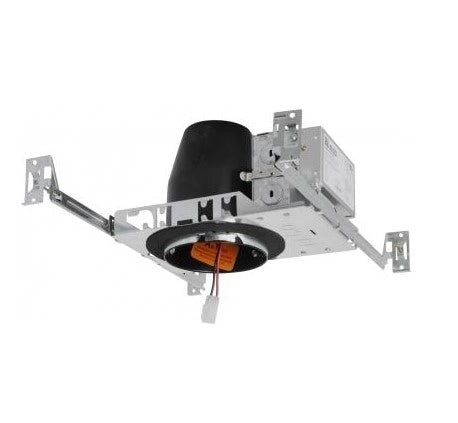

3" IC Airtight Single Wall Housing with Driver.
Trims: ELCO Cedar System 3" LED Light Engines. Sold Separately!
Lumens - 850lm
Voltage - 120/277v
Dimmability - SunsetK

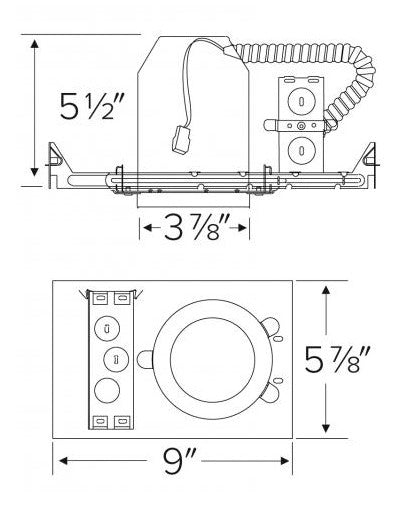

Height - 5 1/2"
Length - 9"
Width - 5 7/8"
- Single Wall IC Airtight for use in insulated ceilings
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- UL Listed for direct contact with insulation
- Optional For Purchase: 90 Minute Battery Backup, 120/277 VAC, 60Hz (Call our Customer Support Line at 1-877-235-0020 for more information): Sold Separately!
- Optional For Purchase: ELCO Fire Resistance Accessories: Sold Separately!
- Flicker-Free Dimming, USA designed and assembled
- 2 at the end of the item number denotes Generation 2; Please note Gen 2 and Gen 1 are not cross compatible
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Direct Contact with insulation and Combustible materials
- UL Listed for Feed Through
- CA Title 24
- 5 year limited factory warranty
<br /><b>Construction/Installation</b><br />▪ Single Wall IC Rated for direct contact with insulation, for use in IC and non-IC conditions. 850 Lumens.<br />▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness. Suitable for T-grid and drop ceiling applications.<br />▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.<br />▪ Designed for ceiling plenums where 2x6 joists or taller are used. High strength hanger bars can be easily nailed to joists.<br /><br /><b>Junction Box </b><br />▪ Positioned to accommodate straight conduit runs.<br />▪ Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, Four (4) Pry-out knockout slots for easy romex installation.<br />▪ One (1) 3/8" Knockout. See installation sheet for detailed information<br /><br /><b>Hanger Bars / New Construction</b><br />▪ Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams.<br />▪ Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists.<br /><br /><b>Electrical</b><br />▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.95.<br /><br /><b>Dimmability</b><br />▪ SunsetK dimming. Sunset dimming is ELCO's dim-to-warm LED Technology. Sunset dimming allows the color temperature to become warmer as the product is dimmed. <br /><br /><b>Compatible Trims<br /></b>▪ Compatible with - ELCO Cedar System 3" LED Light Engines.<br /><br /><b>Listing</b><br />▪ UL Listed for Damp Locations. UL Listed Wet Location with select trims<br />▪ UL Listed for Feed Through. CA Title 24.<br />▪ UL Listed for Direct Contact with Insulation and Combustible Materials.<br /><br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">Lumens</td>
<td width="72%">850LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Construction Type
</td>
<td>
Airtight-New Construction</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Hanger Bars</td>
<td>
Spans Up To 24" And Can Be Repositioned 90°<br />
</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage</td>
<td>120/277V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty
</td>
<td>5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Knockouts
</td>
<td>Seven (7) 1/2" Trade Size Conduit Knockouts, Two (2) 3/4" Knockouts, One (1) 3/8" Knockout, Four (4) Pry-Out Knockouts Slots</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Approval Type
</td>
<td>UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, CA Title 24, UL Listed For Direct Contact with Insulation and Combustible Materials</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Recessed Size
</td>
<td>3"
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Optional For Purchase</td>
<td>90 Minute Battery Backup, 120/277 VAC, 60Hz (NOT Included)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Dimmability</td>
<td>Yes/SunsetK Dimming</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Dimensions
</td>
<td>
See Illustrations/See Spec Sheet
</td>
</tr>
