MORE ABOUT THIS ITEM
DESCRIPTION
4" ELCO Laurel System LED Light Engine with Wall Wash Trim (2nd Generation)
Triac/ELV/Dimmable
Wattage - 18w
Lumens - 1,600lm
Color Temperature - 3000K
Beam Angle - 60°
CRI - 93+
Finish - White/White

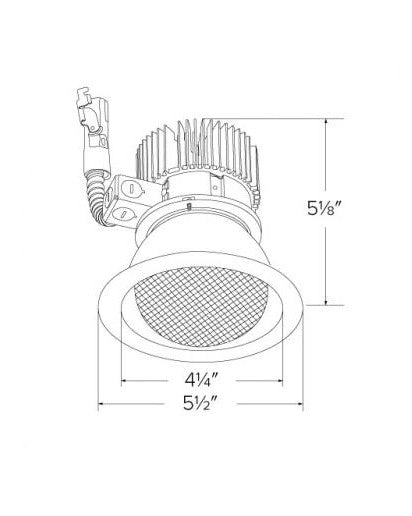

Height - 5 1/8"
Inner Diameter - 4 1/4"
Outer Diameter - 5 1/2"
- Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology
- Reflector is one piece, deep, self-flanged construction spun from .05" thick high grade aluminum
- Frame sold separately: Must be installed on Laurel System Frame with compatible lumen rating
- USA designed and assembled
- 2 at the end of the product number denotes Generation 2. Please note Gen2 and Gen 1 are not cross compatible.
- cULus Listed for Wet Location
- RoHS Compliant
- Life span of 50,000 hours L70
- CA Title 24 JA8 Compliant
<br />
The ELCO 4" Laurel System LED Light Engine with Wall Wash Trim (2nd Generation)<br /><br />
<p>
<span style="font-weight: bold;">LED Technology</span></p>
<ul>
<li>Extremely accurate color rendering index of 93+ CRI.</li>
<li>Efficacy of >90 lumens per watt.</li>
<li>Lumen maintenance of 50,000 hours L70 based on LM80 standardized test results.</li>
<li>Superior Thermal Management by utilizing ELCO Red heat sink.</li>
<li>Instant on to full brightness technology. No LED pixelation.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.</li>
<li>Reflector is one piece, deep, self-flanged construction spun from .05" thick high grade aluminum.</li>

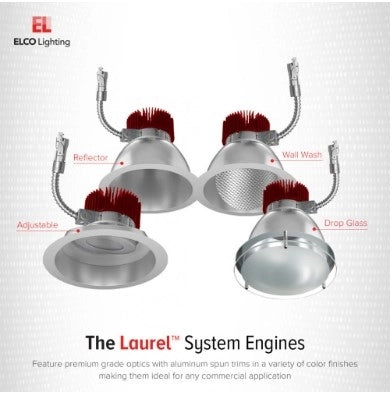

<li>Reflector allows for minimum glare and a strong glare cut-off. Wall Wash reflector pushes light in one direction to evenly light up a wall or frame.</li>

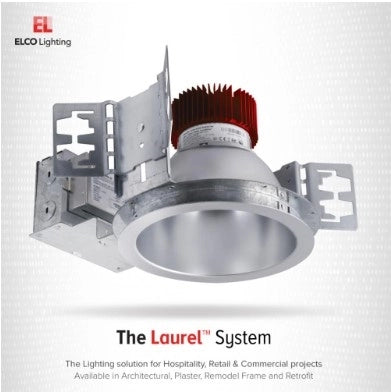

<li>Must be installed on a Laurel System frame with compatible lumen rating.</li>
<li>Frames are available for New Construction, Remodel, and as a retrofit Kit.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span></p><ul>
<li>5 year limited factory warranty</li>
<li>CA Title 24 JA8 Compliant, RoHS Compliant</li>
<li>UL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>18 Watts</li>
<li>1,600lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Lens</td>
<td width="72%">Frosted Polycarbonate</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>Wall Wash Trim</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Recessed, Wall Wash, Downlight, Round (2nd Generation)</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Special Information</td>
<td>USA Designed and Assembled<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White/White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>18 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>1,600LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle</td>
<td>60°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CCT</td>
<td>3000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
