MORE ABOUT THIS ITEM
DESCRIPTION

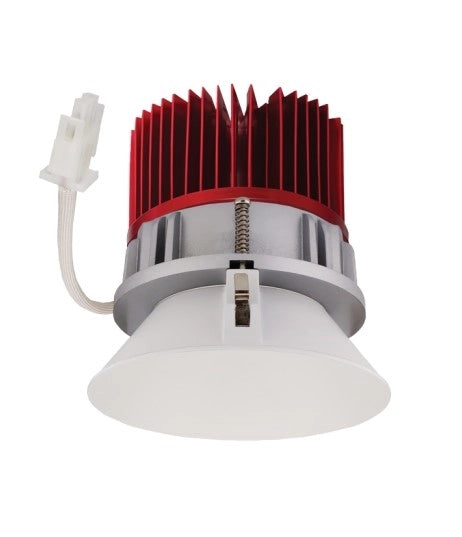

4" LED Light Engine with Trimless Reflector. The perfect lighting solution for high-end residential projects with existing housings. Must be installed in ELCO 4" Cedar System Housings!
Triac/ELV/0-10VDimmable
Wattage - 8.76w
Lumens - 850lm
Color Temperature - 3000K
Beam Angle - 60°
CRI - 93+
Finish - White

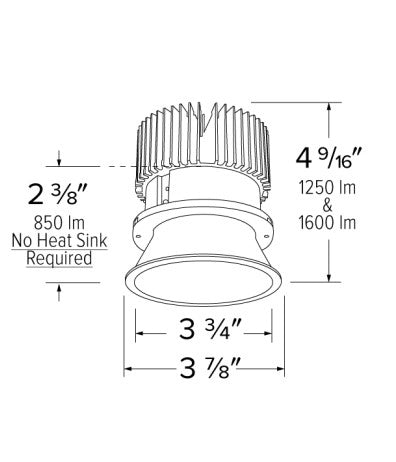

Height - 2 3/8"
Inner Diameter - 3 3/4"
Outer Diameter - 3 7/8"
- 850 lumen no heat sink required!
- High efficiency LED module, must be used in ELCO 4" Cedar System housing with compatible lumen rating
- Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology
- Reflector is two piece trim for maximum color versatility
- Design allows for minimal glare and a strong glare cut-off
- USA designed and assembled, Spackle Frame Included!
- 2 at the end of the product number denotes Generation 2. Please note Gen 1 and Gen 2 are not cross compatible
- UL Listed for Wet Location
- RoHS Compliant
- Life span of 50,000 hours L70
- CA Title 24 JA8 Compliant
<br />
The ELCO 4" LED Light Engine with Trimless Reflector<br /><br />
<p>
<span style="font-weight: bold;">LED Technology</span>
</p>
<ul>
<li>Extremely accurate color rendering index of 93+ CRI.</li>
<li>Efficacy of 97 lumens per watt.</li>
<li>Lumen maintenance of 50,000 hours L70 based on LM80 standardized test results.</li>
<li>Superior Thermal Management by utilizing ELCO Red heat sink.</li>
<li>Instant on to full brightness technology. No LED pixilation.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.</li>
<li>Reflector is two piece trim for maximum color versatility.</li>
<li>Design allows for minimum glare and a strong glare cut-off.</li>
<li>Must be installed in ELCO 4" Cedar System Frame with compatible lumen rating. Frames are available for New Construction and Remodel as IC and Non-IC.</li>
<li>Trim is constructed of metal for maximum durability.</li>

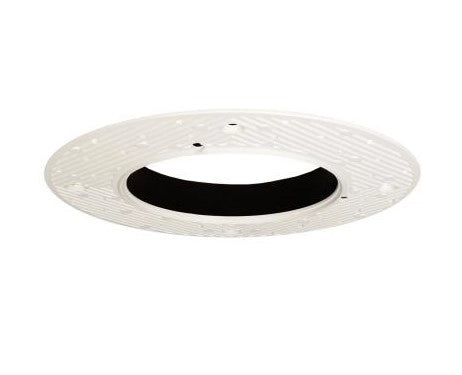

<li>Spackle frame included.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>5 year limited factory warranty</li>
<li>CA Title 24 JA8 Compliant</li>
<li>RoHS Compliant, UL Listed for Wet Location</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>8.76 Watts</li>
<li>850lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Lens</td>
<td width="72%">Frosted Polycarbonate</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Light Engine</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Recessed, Trimless, Reflector, Downlight, Round</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Special Information</td>
<td>USA Designed and Assembled<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>8.76 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>850LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle</td>
<td>60°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CCT</td>
<td>3000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
