DESCRIPTION

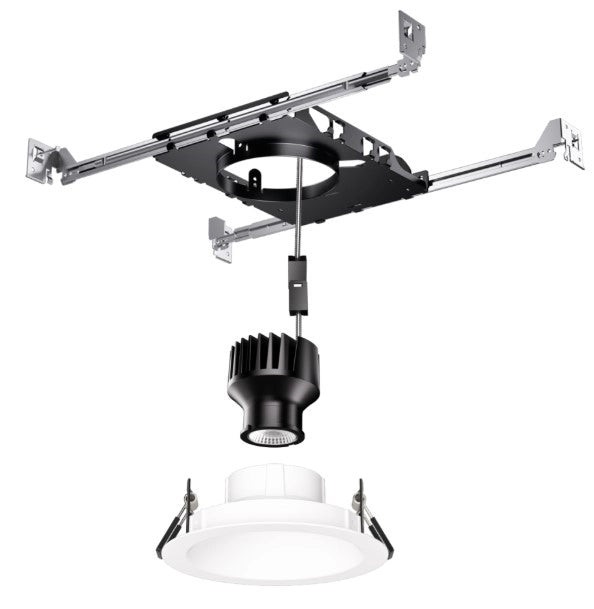

4" Koto MAX New Construction Frame! Use with Koto MAX LED Modules and Trims!
0-10V/Triac/ELV/Dimmable
Wattage - 6W
Voltage - 120-277V
Lumens - 750lm
Dimmable - 0-10V/Triac/ELV
Width - 6"
Length - 8 1/2"
- Easy-To-Remove driver on frame, Plaster Frame
- High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications.
- Driver specified for 120-277V. High efficiency driver with a power factor > 0.95
- Option 0-10V/ELV/Triac dimming (1%).
- cUL Listed for Damp Locations with Damp Location trims and Wet Locations with Wet Location Trims, IC Rated for Direct Contact with Insulation up to 14 Watts. Non-IC for 19 Watts to 32 Watts. Light engine is thermally protected (sold separately). RoHS Compliant, Title 24 JA8-2022-E Compliant
- 5 year limited factory warranty
<b>Construction:</b> IC rated for direct contact with insulation for 750lm (6W), 1,000lm (8W), 1,250lm (11W), and 1,500lm (14W) outputs. Non IC rated for 2,000lm (19W), 2,500lm (23W), 3,000lm (29W), and 3,500lm (32W) outputs.<br /><br /><b>Installation:</b> High strength hanger bars can easily be nailed to joists. Suitable for T-grid and drop ceiling applications.<br /><br /><b>Hanger Bars:</b> Pre-Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.<br /><br />Hanger bars ordered separately for Architectural Frame (<b>AF</b> in Product code). 27" Flat bars for wood construction (FB27) and 26" C-Channel bars for T-bar ceiling (CH26) available for purchase.<br /><br /><b>Electrical:</b> Driver is rated for 120-277V. High Efficiency driver with a power factor > 0.95.<br /><br /><b>Dimmability:</b> 0-10V/ELV/Triac dimming (1%).
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table" width="100%" cellspacing="0" style="background-color: rgb(242, 243, 244); font-size: 16px;"><tbody><tr><th colspan="2" bgcolor="#f0f0f0" align="left">Tech Specs</th></tr><tr></tr><tr bgcolor="#fefefe"><td></td><td></td></tr><tr bgcolor="#f0f0f0"><td width="28%">Dimmable</td><td width="72%">Yes (0-10V/Triac/ELV)</td></tr><tr bgcolor="#fefefe"><td>Item Type</td><td>Koto MAX New Construction Frame</td></tr><tr bgcolor="#f0f0f0"><td>Compatibility</td><td>Koto MAX LED Modules and Trims</td></tr><tr bgcolor="#fefefe"><td>Manufacturer</td><td>ELCO Lighting</td></tr><tr bgcolor="#f0f0f0"><td>Wattage</td><td>6 Watts</td></tr><tr bgcolor="#fefefe"><td>Finish</td><td>Black/Silver</td></tr><tr bgcolor="#f0f0f0"><td>Lumens</td><td>750 Lumens</td></tr><tr bgcolor="#fefefe"><td>Listed</td><td>IC Rated For Direct Contact With Insulation</td></tr><tr bgcolor="#f0f0f0"><td>Includes</td><td>Easy-To-Remove Driver on Frame<br /></td></tr><tr bgcolor="#fefefe"><td>Width</td><td>6"</td></tr><tr bgcolor="#f0f0f0"><td>Length</td><td>8 1/2"</td></tr><tr bgcolor="#fefefe"><td>Voltage</td><td>120-277V</td></tr></tbody></table>
