DESCRIPTION

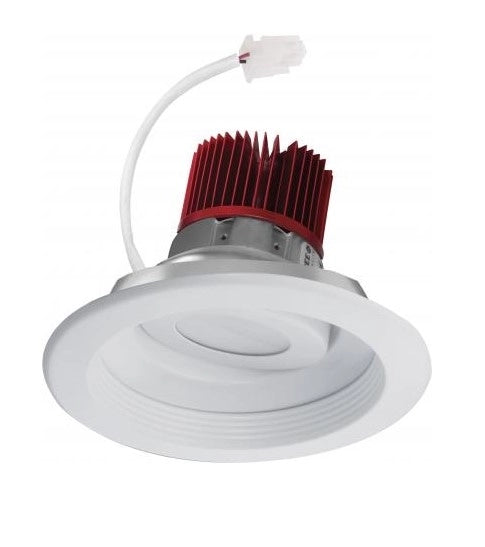

6" LED Light Engine with Adjustable Baffle Trim. The perfect lighting solution for high-end residential projects with existing housings. Must be installed in ELCO Cedar system frame with compatible lumen rating!
Triac/ELV/0-10VDimmable
Wattage - 20.6w
Lumens - 2,000lm
Color Temperature - 3500K
Beam Angle - 60°
CRI - 93+
Finish - White/White

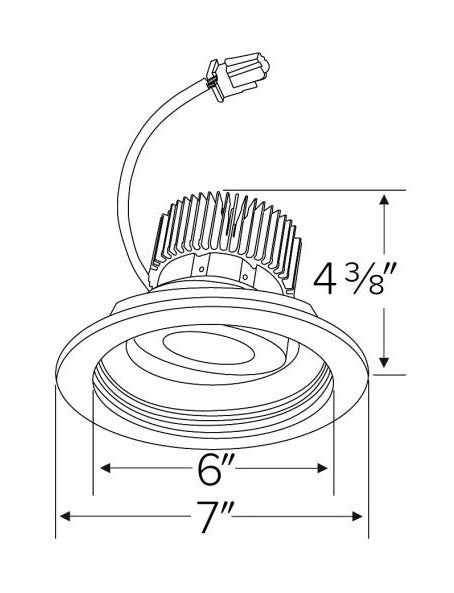

Height - 4 3/8"
Inner Diameter - 6"
Outer Diameter - 7"
- High efficiency LED module, must be installed in ELCO Cedar System frame with compatible lumen rating
- Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology
- Reflector is two piece trim for maximum color versatility
- Design allows for minimal glare and a strong glare cut-off
- USA designed and assembled
- 2 at the end of the product number denotes Generation 2. Please note Gen 1 and Gen 2 are not cross compatible
- UL Listed for Wet Location
- RoHS Compliant
- Life span of 50,000 hours L70
- CA Title 24 JA8-2016-E Compliant
<br />
The ELCO 6" LED Light Engine with Adjustable Baffle Trim<br /><br />
<p>
<span style="font-weight: bold;">LED Technology</span>
</p>
<ul>
<li>Extremely accurate color rendering index of 93+ CRI.</li>
<li>Efficacy of 97 lumens per watt.</li>
<li>Lumen maintenance of 50,000 hours L70 based on LM80 standardized test results.</li>
<li>Superior Thermal Management by utilizing ELCO Red heat sink.</li>
<li>Instant on to full brightness technology. No LED pixilation.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.</li>
<li>Reflector is two piece trim for maximum color versatility.</li>
<li>Design allows for minimum glare and a strong glare cut-off.</li>
<li>Must be installed in ELCO Cedar System Frame with compatible lumen rating. Frames are available for New Construction and Remodel as IC and Non-IC.</li>
<li>Trim is constructed of metal for maximum durability.</li>
<li>ELCO compatible housings: E6FH, E6LC, E6LRC</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>5 year limited factory warranty</li>
<li>CA Title 24 JA8-2016-E Compliant</li>
<li>RoHS Compliant, UL Listed for Wet Location</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>20.6 Watts</li>
<li>2,000lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Lens</td>
<td width="72%">Frosted Polycarbonate</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Light Engine</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Recessed, Adjustable, Baffle, Downlight, Round</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Special Information</td>
<td>USA Designed and Assembled<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White/White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>20.6 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>2,000LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle</td>
<td>60°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CCT</td>
<td>3500K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
