MORE ABOUT THIS ITEM
DESCRIPTION

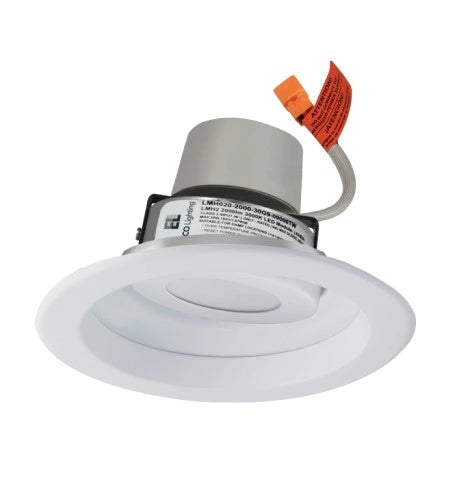

6" Cedar System Round Adjustable Reflector Trim with LED Module and Driver.
Triac/ELV/Dimmable
Wattage - 11.4w
Lumens - 850lm
Color Temperature - 4000K
Beam Angle - 60°
CRI - 93+
Avg. Rated Life (L70) - 50,000 Hours
Finish - White/White

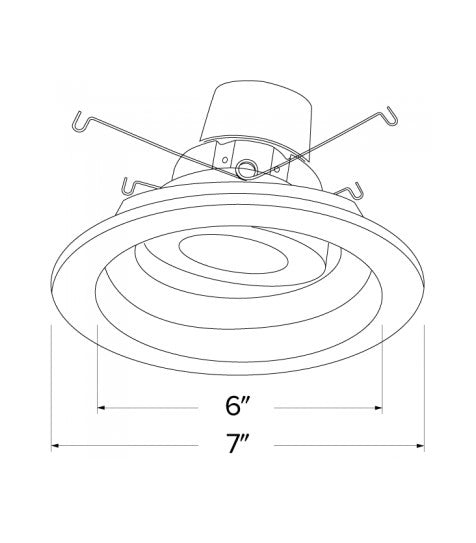

Inner Diameter - 6"
Outer Diameter - 7"
- Module includes LED Module Driver
- Can be used in dedicated LED housings from ELCO or used to retrofit medium base (E26) housings
- Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off
- Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology
- USA designed and assembled
- The perfect lighting solution for high-end residential projects with existing housings
- cULus Listed for Wet Location
- RoHS Compliant, 5 year limited factory warranty
- CA Title 24 (JA8-2016-E) Compliant
<br />
The ELCO 6" Cedar System Round Adjustable Reflector Trim with LED Module and Driver!<br /><br />
<p>
<span style="font-weight: bold;">LED Technology</span></p>
<ul>
<li>Extremely accurate color rendering index of 93+ CRI.</li>
<li>Efficacy of 97 lumens per watt.</li>
<li>Lumen maintenance of 50,000 hours L70 based on LM80 standardized test results.</li>
<li>Superior Thermal Management by utilizing ELCO Red heat sink.</li>
<li>Instant on to full brightness technology. No LED pixilation.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.</li>
<li>Reflector is two piece trim for maximum color versatility. Design allows for minimal glare and a strong glare cut-off.</li>
<li>Trim is constructed of metal for lasting durability.</li>
<li>Can be used in dedicated LED housing from ELCO or used to retrofit medium base (E26) housings.</li>
<li>USA designed and assembled. Life span of 50,000 hours L70.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span></p><ul>
<li>5 year limited factory warranty</li>
<li>CA Title 24 JA8-2016-E Compliant, RoHS Compliant</li>
<li>UL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>11.4 Watts</li>
<li>850lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Lens</td>
<td width="72%">Frosted Polycarbonate Diffused</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>Round Adjustable Trim</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>LED Module and Driver</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens Per Watt</td>
<td>97</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White/White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>11.4 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>850LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle</td>
<td>60°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CCT</td>
<td>4000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
