MORE ABOUT THIS ITEM
DESCRIPTION
Triac/ELV Dimmable
Wattage - 12.5W
Voltage - 120v
Color Temp - 4000K
Lumens - 1,200lm
CRI - 95+
Beam Angle - 28° Narrow Flood
Finish - White

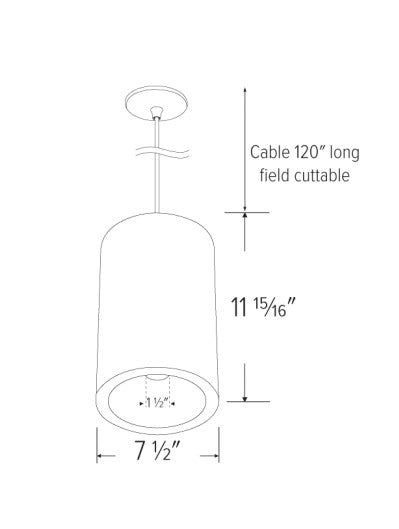

Inner Diameter - 1 1/2"
Outer Diameter - 7 1/2"
Fixture Length - 11 15/16"

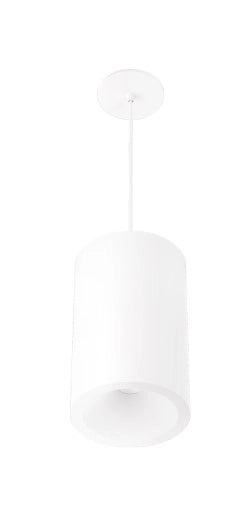

- Modern Fixed Pendant Die-Cast Aluminum fixture for easy maintenance and upgrades
- Twist-On Design for tool-less module installation
- Cable 120" long field cuttable
- Fits 3 1/2" and 4" Octagon and Round Junction Boxes
- Includes: 28° Narrow Flood lens
- Optional: 15°, 18°, 38°, and 60° Lenses available: Sold Separately!
- Module connects to 120V power supply
- Life Span of 50,000 hours L70
- UL Listed for Damp Locations
- 5 year limited factory warranty
- Energy Star Certified, CA Title 24 JA8-2019 Compliant, RoHS Compliant
<div><b> Optics:</b> Polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology.<br /><b>Construction:</b> Integrated driver and light engine with quick connect. Die-cast aluminum body with heat fins allows for efficient cooling.<br /><b>Installation:</b> Twist-On design for tool-less trim installation.<br /><b>Electrical:</b> Module connects to 120V power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds.<br /><b>Emergency Battery Backup:</b> Optional For Purchase: Integral EM Test Switch on Cylinder. EM option added to the end of product number call our customer service line (877-235-0020) for more details on pricing.<br /><b>LED Technology:</b> Extremely accurate Color Rendering Index of 95+. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results. Superior Thermal management by utilizing integrated heat sink. Instant On to full brightness. No LED pixilation.<br /><b>Dimmability:</b> Industry leading dimming that dims smoothly with no hotspots or flickering.<br /><b>Listings:</b> UL Listed for Damp Locations, RoHS Compliant, Meets Energy Star & California Title 24 JA8-2019 standards.<br /><b>Warranty:</b> ELCO 5 year limited factory warranty.</div>
TECHNICAL SPECIFICATIONS
<br />
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Voltage Rating
</td>
<td width="72%">
120V</td>
</tr>
<tr bgcolor="#fefefe">
<td>Material</td>
<td>
Modern Die-Cast Aluminum for Easy Maintenance and Upgrades</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Wattage</td>
<td>12.5 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>Color Temperature</td>
<td>4000K</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens
</td>
<td>1,200LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Compatible Junction Boxes</td>
<td>3 1/2" And 4" Octagon and Round</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Beam Angle</td>
<td>28° Narrow Flood<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>
CRI</td>
<td>95+<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Compatible</td><td>Standard Koto LED Modules</td>
</tr>
<tr bgcolor="#fefefe">
<td>Warranty</td>
<td>5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Finish</td>
<td>White</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
