MORE ABOUT THIS ITEM
DESCRIPTION

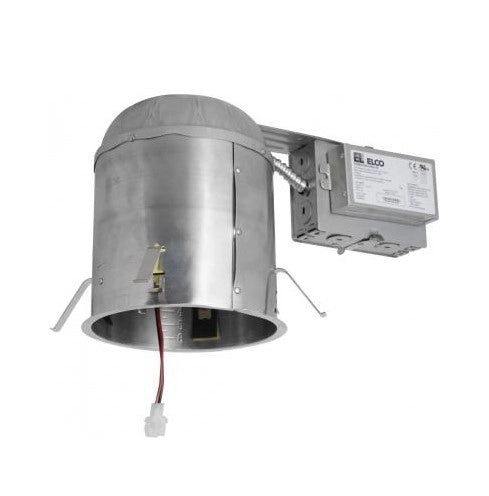

6" Cedar System Remodel Housing with Driver.
Trims: ELCO Cedar System 6" LED Light Engines. Sold Separately!
Lumens - 2,000lm
Voltage - 120/277v
Dimming - Triac/ELV/0-10V

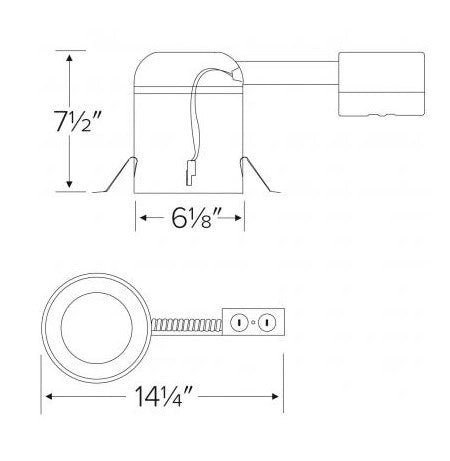

Height - 7 1/2"
Length - 14 1/4"
- Non- Frame IC for non-IC conditions.
- Trims and inserts sold separately
- Optional For Purchase: 90 minute 120/277 VAC, 60Hz, Emergency Backup, Fire Resistance: Call our customer service line, 1-877-235-0020, for more info!
- 5 year limited factory warranty
- USA designed and assembled, Flicker Free Dimming
- 2 at the end of item number denotes Generation 2, please note Gen 1 and Gen 2 are not cross compatible
- UL Listed for Damp Locations/Wet Locations with select trims
- UL Listed for Feed Through
- Meets CA Title 24 requirements
<br /><b>Construction/Installation</b><br />â–ª Non-IC Frame for non-IC conditions.<br />â–ª Suitable for T-grid and drop ceiling applications.<br />â–ª Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.<br />â–ª Designed for ceiling plenums where 2x8 joists or taller are used.<br /><br /><b>Junction Box </b><br />â–ª Positioned to accommodate straight conduit runs.<br />â–ª Seven (7) 1/2" trade size conduit knockouts, Two (2) 3/4" knockouts, One (1) 3/8" knockout.<br />â–ª Four (4) Pry-outs knockouts slots for easy Romex installation. See installation sheet for detailed information<br /><br /><b>Emergency Battery Backup</b><br />â–ª Optional: Up To 90 Minutes of Emergency Power Battery Backup with test indicator switch (double wall housings requires access from above): Sold Separately!<br /><br /><b>Electrical/Dimming</b><br />â–ª Driver is rated for 120V and 277V input(120/277V). 3 in 1 Dimming: Triac, ELV, and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming. Flicker free dimming.<br /><br /><b>Compatible Trims<br /></b>â–ª Compatible with - For use with ELCO Cedar System 6" LED Light Engines.<br /><br /><b>Listing</b><br />â–ª UL Listed for Damp Locations. UL Listed Wet Location with select trims.<br />â–ª Meets CA Title 24 Requirements<br />â–ª UL Listed for Feed Through.<br /><br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">Compatibility</td>
<td width="72%">For Use With ELCO Cedar System 6" LED Light Engines: Sold Separately!</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Construction Type
</td>
<td>Non-IC/Remodel</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Other Information</td>
<td>USA Designed and Assembled</td>
</tr>
<tr bgcolor="#fefefe">
<td>Fire Rated</td>
<td>No/ELCO Fire Resistance Accessories Available For Purchase</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty
</td>
<td>
5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Knockouts
</td>
<td>Seven (7) 1/2" Trade Size Conduit Knockouts, Two (2) 3/4" Knockouts, One (1) 3/8" Knockout, Four (4) Pry-Out Knockouts Slots</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Approval Type
</td>
<td>UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed - Feed Through wiring, Meets CA Title 24 Requirements</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Recessed Size
</td>
<td>6"
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>2,000LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Voltage Rating
</td>
<td>120/277 Volts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Dimmable</td>
<td>Triac/ELV/0-10V</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
