DESCRIPTION

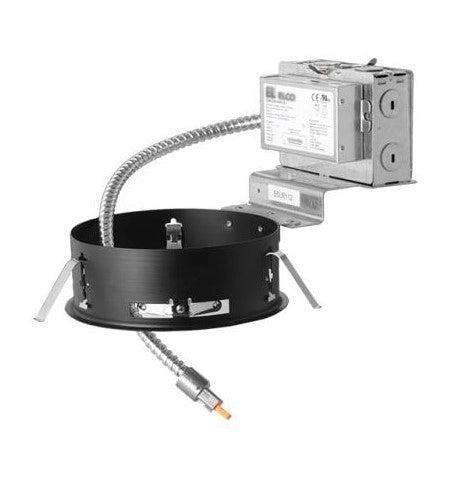

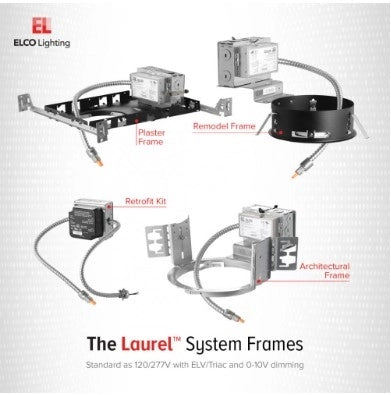

Laurel System 6" Remodel Frame with Driver.
Trims: For Use With 6" Laurel LED Light Engines
Voltage - 120/277v
Lumens - 6,000lm
Dimmable - Triac/ELV/0-10V

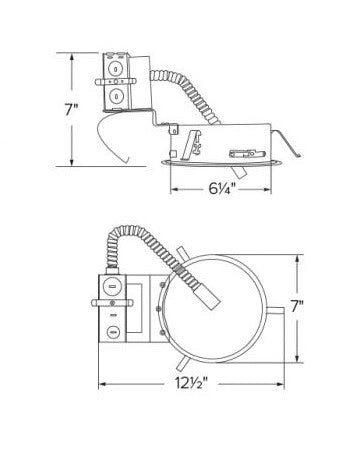

Height - 7"
Width - 7"
Length - 12 1/2"
- Optional 90 minutes, 120/277 VAC, 60Hz Emergency Backup - Added Costs Vary
- USA designed and assembled
- Remodel clips hold housing sturdily into place
- Flicker Free Dimming: Optional Lutron or Sunset Dimming: Additional Fees May Apply!
- LED Light Engine: Sold Separately!
- 2 at the end of the product number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible!
- 5 year factory warranty (limited)
- cULus Listed for Damp Locations and Wet Locations with Select Trims
- cULus Listed for Direct Contact with insulation and Combustible materials for units up to 2,000lm
- cULus Listed for Feed Through
- CA Title 24 JA8 Compliant
<br /><b>Construction</b><br />▪ Constructed from 16 gauge galvanized steel for commercial building applications.<br />▪ Remodel clips hold housing sturdily into place.<br />▪ Flicker-Free dimming.<br />▪ Light engine sold separately. USA designed and assembled.<br /><br /><b>Junction Box </b><br />▪ Positioned to accommodate straight conduit runs.<br />▪ Seven (7) 1/2" trade size conduit knockouts.<br />▪ Four (4) Pry-out knockout slots for easy Romex installation.<br /><br /><b>Electrical</b><br />▪ Driver is rated for 120V and 277V input (120/277V). High efficiency driver with a power factor >0.9. Can be specified with Lutron drivers for specific applications.<br /><br /><b>Dimmability</b><br />▪ 3-in-1 dimming. Triac, ELV and 0-10V dimming in one driver. 0-10V dimming down to 5% with a compatible dimmer. Can be specified with Lutron drivers for 0.1% and 1% dimming.<br /><br /><b>Compatible Trims<br /></b>▪ Compatible with - For use with ELCO 6" Laurel Commercial LED Light Engines.<br /><br /><b>Listing</b><br />▪ cULus Listed for Damp Locations. UL Listed Wet Location with select trims.<br />▪ cULus Listed for Feed Through. CA Title 24 JA8 Compliant.<br />▪ cULus Listed for Direct Contact with Insulation and Combustible Materials up to 2,000LM.<br /><br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">Lumens</td>
<td width="72%">6,000LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Construction Type
</td>
<td>Remodel</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Installation</td>
<td>Remodel Clips Hold Housing Sturdily Into Place</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Dimmability
</td>
<td>Triac/ELV/0-10V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty
</td>
<td>
5 Year Factory Warranty (limited)
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Knockouts
</td>
<td>Seven (7) 1/2" Trade Size Conduit Knockouts, Four (4) Pry-Out Knockout Slots</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Approval Type
</td>
<td>UL - Damp Locations, UL - Wet location (with Select Trims), UL Listed for Feed through, UL Listed For Direct Contact, CA Title 24 JA8 Compliant</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Recessed Size
</td>
<td>6"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Generation</td>
<td>2nd</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Voltage Rating
</td>
<td>
120/277V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Manufacturer</td>
<td>ELCO/USA Designed and Assembled</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
