MORE ABOUT THIS ITEM
DESCRIPTION
Designed to be installed without a recessed housing. Works with New Construction Frames or Remodel Power Packs and Koto Twist-On Trims.
Triac/ELV/0-10VDimmable
Lumens - Up To 950lm
Beam Angle - 38° (Standard/Installed)/25° and 60° Included
CRI - 95
Finish - Black

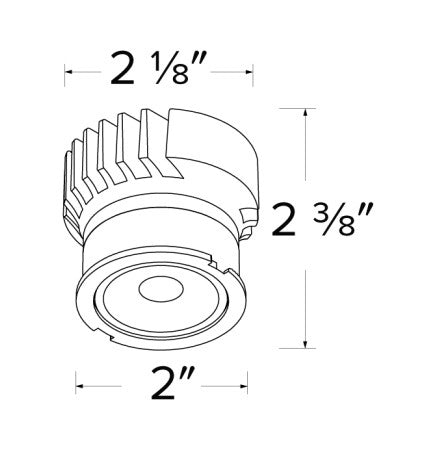

Base Diameter - 2 1/8"
Height - 2 3/8"
Lens Diameter - 2"
- IC Rated for Direct Contact with Insulation
- Canless Module works with Koto Frames and power packs
- Driver specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming
- Excellent color rendering 95+ CRI
- Works in 2", 3", 4", and 6" Canless Koto Twist-On trims
- Push and twist connector on module for easy installation
- Standard 38° Lens installed, 25° and 60° lens included with each module
- Optional Lens: 18° (EP731C)
- Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter (L50)
- Lifespan of 50,000 hours L70
- Covered by U.S. Patents and Patents Pending
- 5 year limited factory warranty
- UL Listed Damp Location, UL Listed w/Wet Location Trims
- Title 24 JA8-2022-E Compliant
<p style="background-color: rgb(255, 255, 255);">
</p>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Optics: PC lens diffuses light evenly throughout while reducing glare with LED COB technology</li>
<li>Construction: Diecast aluminum body with heat fins allows for efficient cooling</li>

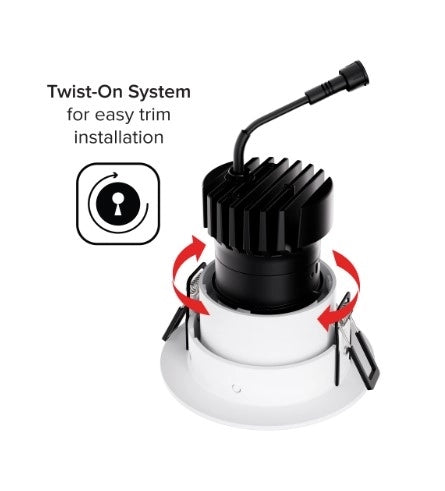

<li>Installation: Twist-lock design for tool-less trim installation, for use with Koto trims only. Can be used in 2", 3", 4" and 6" Canless Koto Twist-On Trims.</li>
<li>Compatible Trims: 2", 3", 4", and 6" Canless Koto Twist-On Trims. Canless Module works with ELCO Koto frames and power packs.</li>
<li>Dimmability: Driver Specified for 120V (Triac/ELV) or 120/277V (0-10V/Triac/ELV) dimming.</li>
<li>LED Technology: Extremely accurate color rendering index of 95+. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results</li>
<li>Superior Thermal Management by utilizing integrated heat sink. Instant on to full brightness technology. No LED Pixilation.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Damp Location. UL Listed w/Wet Location Trims</li>
<li>Title 24 JA8-2022-E Compliant.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>38/25/60 Degree Beam Angle</li>
<li>Up To 950Lumens</li>
<li>Black</li>
<li>95+ CRI</li>
</ul>
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">Driver Specified (0-10V/Triac/ELV)</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Recessed Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Canless Koto LED Module</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer/Warranty</td><td>ELCO Lighting/5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td><td>95+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Black</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>Up To 950 Lumens</td>
</tr>
<tr bgcolor="#fefefe">
<td>Listed</td>
<td>CA Title 24 JA8-2022-E Compliant, UL Listed Damp Locations, UL Listed Wet Locations With Select Trims</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Beam Angle</td>
<td>38° (Standard/Installed)/25° and 60° Included<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Compatibility</td>
<td>Works with Koto Frames and Power Packs</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Color Temperature
</td>
<td>2700K</td>
</tr>
<tr bgcolor="#fefefe">
<td>Material</td>
<td>Diecast Aluminum Body</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
