MORE ABOUT THIS ITEM
DESCRIPTION

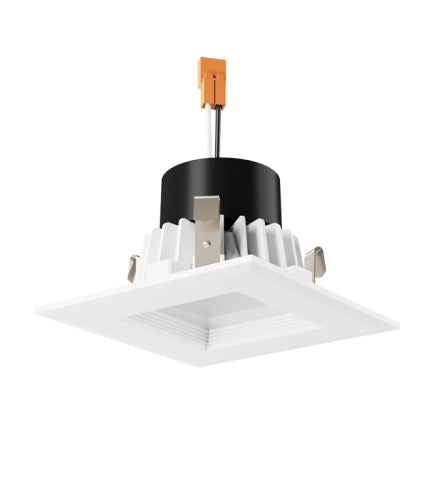

The ELCO EL44130W Square LED Baffle Insert are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC Housings manufactured by ELCO and others.
Key Features
- 10W Square LED Baffle Insert
- Includes Medium Base (E26) Adapter
- 93+ CRI for enhanced color clarity
- Works with 120V Triac and ELV type dimmers
- Wet location rated
Ideal Applications
- Showers
- Covered outdoor areas
- Moisture-prone environments
- Kitchens, offices, and retail spaces
- Multi-family installations
Specifications
- Brand: ELCO Lighting
- Model: EL44130W
- Technology: LED Technology
- Application: Square LED Baffle Insert
- Housing: Die-cast construction
- Location Rating: Wet Location Rated
<br /><span style="font-weight: bold;">LED Driver/Dimmability</span><br /><br />
<ul>
<li>Connects to 120v power supply. High efficiency driver with a power factor > 0.9.</li>
<li>For full list of dimmers see ELCO's Dimmer Compatibility List.</li>
<li>Works with 120v Triac and ELV type dimmers. Dims down to 10%.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Fits ELCO 4" Dedicated LED Recessed Housings, Regular and Shallow.</li>
<li>For use in IC and Non-IC housings manufactured by ELCO and others. Diecast construction for lasting quality and greater heat dissipation. High quality powder coat finish</li>
<li>Includes medium base (E26) socket adapter (PSA30) for retrofitting existing E26 base housings</li>
<li>Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.</li>
<li>Quick connect for use with selected ELCO housings. See spec sheet for list of compatible ELCO housings</li>
<li>Extremely accurate color rendering with 93+ CRI. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results.</li>
<li>Superior Thermal Management by utilizing integral heat sink. Instant on to full brightness. No LED pixilation.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>UL Listed for Wet Locations, RoHS Compliant</li>
<li>Fire Resistance and Battery Backup with ELCO accessories: Sold Separately!</li>
<li>CA Title 24 JA8-2019, ENERGY STAR Certified</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>10 Watts</li>
<li>700 Lumens</li>
<li>93+ CRI</li>
</ul>
TECHNICAL SPECIFICATIONS
<table width="100%" class="tech_specs_table_wrapper" cellspacing="0">
<tbody>
<tr>
<td>
<table width="100%" class="tech_specs_table" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Item Type
</td>
<td width="72%">
Recessed Lighting LED Retrofit Trim </td>
</tr>
<tr bgcolor="#fefefe">
<td>Color Temperature</td>
<td>3000K</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Manufacturer </td>
<td>
ELCO LIGHTING</td>
</tr>
<tr bgcolor="#fefefe">
<td>Beam Angle</td>
<td>90°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Voltage Type
</td>
<td>
120 Volt</td>
</tr>
<tr bgcolor="#fefefe">
<td>Lumens</td>
<td>700LM</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>
93+<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>10 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Quick Connect Compatible Housings</td>
<td>EL490ICA, EL490RICA, EL492ICA, EL492RICA, EL49FICA</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Dimmable</td>
<td>
YES/Triac/ELV</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
