MORE ABOUT THIS ITEM
DESCRIPTION
The unique Ply System 0-10V dimmable LED insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED Technology and with a 120/277 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K, 5000K) and Lumen output (850lm, 1000lm, 1500lm) by using the manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply System housings or as a retrofit with existing housings.

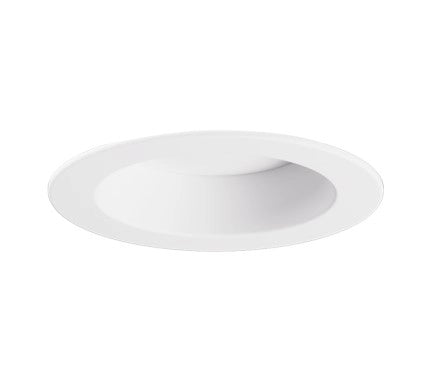

4" 0-10V LED Insert with 5-CCT and 3-Lumen Switch
0-10V/Dimming
Wattage - 9.5/13.5/18W
Voltage - 120/277v
Selectable Lumens - 800lm/1,000lm/1,500lm
Selectable CCT - 27K/30K/35K/40/50K
CRI - 90+
Finish - White/White

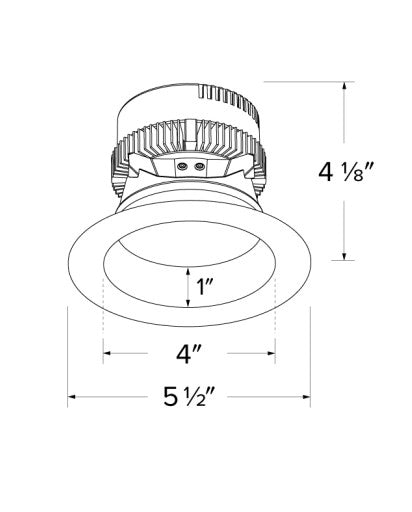

Height - 4 1/8"
Inner Diameter - 4"
Outer Diameter - 5 1/2"
- 4" 0-10V LED Insert with 5-CCT Switch and 3-Lumen Switch

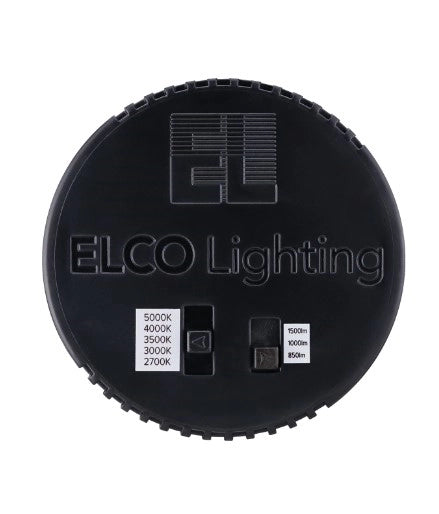

- Manual Switch to choose desired Color Temperature and Lumen Output
- Soft white lens provides smooth lumen distribution and eliminates LED pixelation
- Deep set LED trim reduces glare while providing even illumination
- For use in IC and Non-IC applications
- Life Span: 50,000 hours (@ L70)
- 120/277 Driver
- UL Listed Wet location, RoHS Compliant
- 5 year factory warranty (limited)
- CA Title 24 JA8-2016-E Compliant, Energy Star Certified
- Patent Pending
<p style="background-color: rgb(255, 255, 255);">
</p>
<b>Technical/Installation/Electrical</b><br />
<ul style="background-color: rgb(255, 255, 255);">
<li>120/277V Input. Power factor >0.9. Start time of less than .75 seconds.</li>
<li>For use with ELCO 4" Ply System Housings or as a retrofit with existing housings</li>
<li>Instant on to full brightness. No LED pixelation.</li>
<li>Superior Thermal Management by utilizing heat sink. For use in IC and Non-IC applications.</li>
<li>Deep set LED trim reduces glare while providing even illumination.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Compatible with most incandescent and electronic low voltage dimmers</li>
<li>Soft white lens provides smooth lumen distribution and eliminates glare.</li>
<li>Works with 0-10V dimmers.</li>
<li>High quality powder coat finish preventing rust and cracking.</li>
<li>Dims down to 10%. Dims with no hot spots or flickering.</li>
<li>For full list of dimmers refer to the Dimmer Compatibility List</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings & Certifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Wet Locations, RoHS Compliant</li>
<li>California Title 24 JA8-2016-E, Energy Star Certified</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>9.5, 13.5, 18 Watts</li>
<li>850, 1,000, 1,500 Selectable Lumens</li>
<li>90+ CRI</li>
</ul>
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/0-10V</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>9.5 Watts/13.5 Watts/18 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>0-10V Dimmable LED Insert</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>ELCO</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty/Hours</td>
<td>5 Year Factory (Limited)/50,000 Hours (@ L70)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120/277V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Insert Color</td>
<td>White/White</td>
</tr>
<tr bgcolor="#fefefe">
<td>CRI</td>
<td>90+</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable Lumens</td>
<td>850LM/1,000LM/1,500LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Listings</td>
<td>UL Listed for Wet Locations, CA Title 24 JA8-2016-E, ROHS Compliant, Energy Star Certified</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Dimensions</td>
<td>See Illustrations/Spec Sheet</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable CCT</td>
<td>2700K,3000K,3500K,4000K,5000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
