MORE ABOUT THIS ITEM
DESCRIPTION

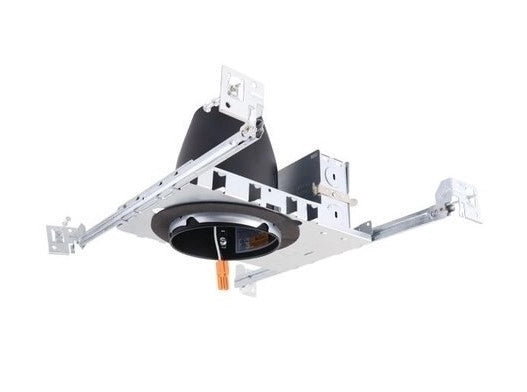

4" New construction dedicated LED housing step-down transformer with quick connect.
Wattage - 14w
Voltage - 277v to 120V Step Down Transformer
- IC Airtight for direct contact with insulation, for use in IC and non-IC applications
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- 277V to 120V step-down transformer
- Trims and inserts sold separately
- Fireproof with ELCO fire resistant accessories: Sold Separately!
- Dimmability based on lamps
- Wet location listed (with shower trims), Damp location listed
- Compatible with Koto Module, LED inserts and PSA37
- 5 year factory warranty (limited)
- CA JA8 Title 24 compliant, Energy Star Certified
<span style="font-weight: bold;"><br /></span>Bulb Type: <span style="color: rgb(192, 80, 77);"><b>Designed for use with ELCO 4" LED Inserts, LED Modules, or PSA37 with 4" MR16 Trims</b></span><br /><br />Housing <br />▪ Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions<br />▪ Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness<br />▪ Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements<br /><br />Junction Box <br />▪ Positioned to accommodate straight conduit runs<br />▪ Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots<br />▪ 4 Romex pryouts with strain relief<br /><br />Hanger Bars / New Construction<br />▪ Pre-installed hanger bars with TrueNail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars<br />▪ Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housing with joists<br /><br />Mounting Frame / New Construction<br />▪ Designed for ceiling plenums where 2x6 joists or taller joists are used. Suitable for T-grid and drop ceiling applications. (see installation sheet for detailed information)<br /><br />Electrical<br />▪ Input Voltage: 277V AC. Inherently protected. Fireproof with ELCO Fire resistant accessories: Sold Separately!<br /><br />Dimmability<br />▪ Dimmability based on lamp.<br /><br />Listing<br />▪ c UL US, Airtight per ASTM E-283<br />▪ Energy Star and California Title 24 Compliant<br />▪ UL listed for Damp/Wet locations with select trims<br /><br />
TECHNICAL SPECIFICATIONS
<table width="100%" class="tech_specs_table_wrapper" cellspacing="0">
<tbody>
<tr>
<td>
<table width="100%" class="tech_specs_table" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">Transformer</td>
<td width="72%">277V to 120V Step-Down</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Construction Type
</td>
<td>
New</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Bar Hangers</td>
<td>
Up to 24" and can be repositioned 90°<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>
Adjustable
</td>
<td>
In Frame up to 1 1/2" Ceiling Thickness</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Knockouts
</td>
<td>(7) 1/2" trade size and (4) 3/4"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Approval Type</td>
<td>
C-UL - Damp/Wet location, JA8 Title 24, Energy Star, </td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Recessed Size</td>
<td>
4 Inch
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Length</td>
<td>
8 3/8"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Width</td>
<td>5 7/8"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Height
</td>
<td>
5 1/2"</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
