MORE ABOUT THIS ITEM
DESCRIPTION

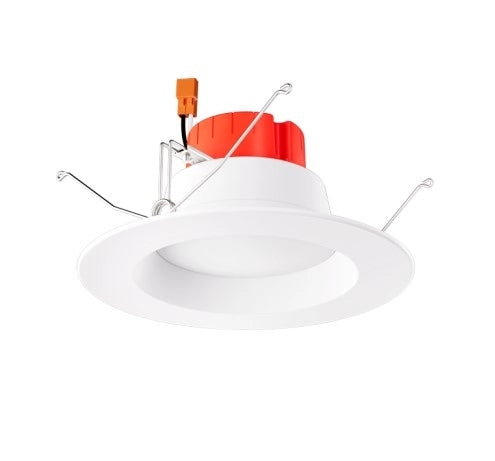

5" or 6" Five Color Temperature Switch LED Deep Insert!
This unique LED recessed downlight gives you the options you are looking for in one fixture. The manual switch located on the driver allows you to choose between 2700K, 3000K, 3500K, 4000K, or 5000K. This is the perfect light for bedrooms, kitchens, closets, and generally all living spaces. ELCO's energy saving fixture gives you all of these options at the flip of a switch.
Triac/ELV/Dimmable
Wattage - 12w
Voltage - 120v
Lumens - 850lm
Selectable CCT - 27/30/35/40/50K
Average Rated Life (L70) - 50,000 Hours
Finish - White/White

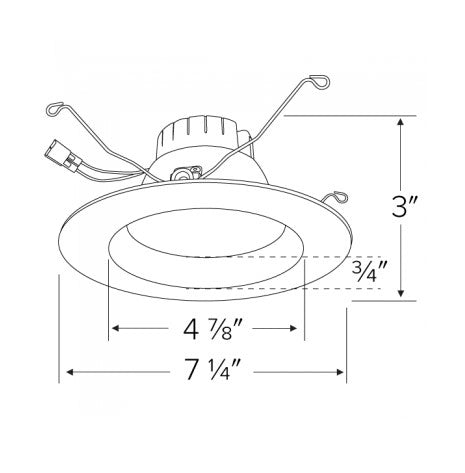

Height - 3"
Inner Diameter - 4 7/8"
Outer Diameter - 7 1/4"
- Switch from 2700K to 5000K by using the manual switch on driver
- Includes Medium Base (E26) Adapter (PSA30) for retrofitting existing E26 Base Housings
- Soft white lens provides smooth lumen distribution
- Deep set LED trim reduces glare while providing area illumination
- 5 year limited factory warranty
- Energy Star Certified
- UL Listed for Wet Location, RoHS Compliant
- Title 24 JA8-2019 Compliant
<br />
The ELCO 5"/6" Five-Color Temperature Switch LED Reflector Insert<br />
<p>
<span style="font-weight: bold;">LED Driver</span>
</p>
<ul>
<li>Driver connects to 120V power supply</li>
<li>High efficiency driver with a power factor >0.9</li>
<li>Start time less than .75 seconds</li>
<li>Includes PSA30 medium base adapter for retrofitting existing housings.</li>
<li>Quick connect for use with EL770ICA, EL770RICA, EL76FICA, EL760ICA, EL760RICA, EL570ICA, EL570RICA, EL56FICA, EL560ICA, EL560RICA.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Soft white lens provides smooth lumen distribution.</li>
<li>For use with IC and Non-IC housings. Spun aluminum for greater heat dissipation.</li>
<li>High quality powder coat finish preventing rust and paint cracking.</li>
<li>Extremely accurate color rendering with 90+ CRI.</li>
<li>Lumen maintenance of 50,000 hours L70 life based on LM80 standardized tests results.</li>
<li>Superior thermal management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.</li>
<li>Works with 120V Triac and ELV type dimmers. Dims down to 10%. Industry Leading dimming, dims smoothly with no hot spots or flickering.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>RoHS Compliant</li>
<li>Energy Star Certified</li>
<li>CA Title 24 JA8-2019 Compliant</li>
<li>UL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>12 Watts</li>
<li>850lm</li>
<li>90+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>
Recessed LED Insert</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>
Recessed, Five CCT Switch LED Reflector Insert</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Base</td>
<td>PSA30 Medium Base (E26) Adapter</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White/White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>90+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120 Volt</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens/Wattage</td>
<td>850LM/12 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>Avg. Rated Life L70</td>
<td>50,000 Hours<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
