MORE ABOUT THIS ITEM
DESCRIPTION

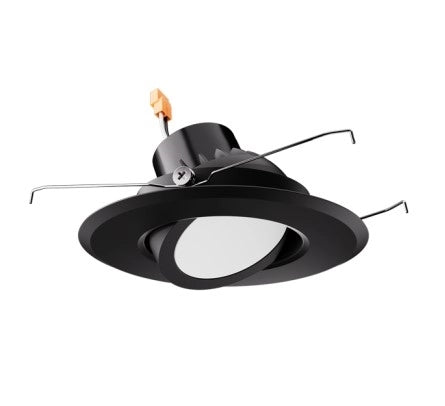

5" or 6" Round LED Adjustable Gimbal Insert!
ELCO Lighting's inserts are engineered energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and retrofit applications, these inserts are rated for a life of 50,000 hours, and meet Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.
Triac/ELV/Dimmable
Wattage - 13w
Voltage - 120v
Lumens - 1,000lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 60° Wide Flood
Adjustability - 25° Tilt/358° Rotation
Average Rated Life (L70) - 50,000 Hours
Finish - Black/Black

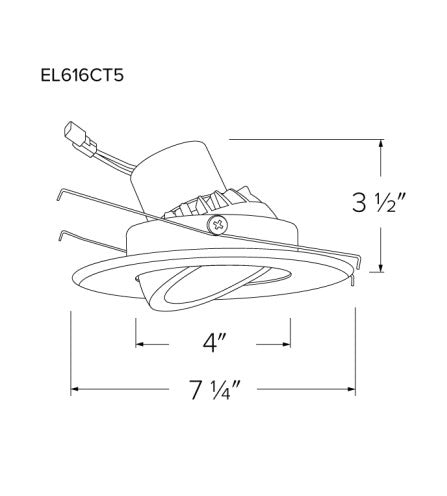

Height - 3 1/2"
Inner Diameter - 4"
Outer Diameter - 7 1/4"
- Fits ELCO 6" Dedicated LED Recessed Housings, Regular and Shallow
- Includes Medium Base (E26) Adapter (PSA30) for retrofitting existing E26 Base Housings
- Die-Cast construction provides lasting durability
- Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology
- 5 year limited factory warranty
- Energy Star Certified
- UL Listed for Damp Location, RoHS Compliant
- Title 24 JA8-2019 Compliant
<br />
The ELCO 5"/6" Round LED Adjustable Gimbal Insert<br />
<p>
<span style="font-weight: bold;">LED Driver</span>
</p>
<ul>
<li>Driver connects to 120V power supply</li>
<li>High efficiency driver with a power factor >0.9</li>
<li>Start time less than .75 seconds</li>
<li>Includes PSA30 medium base adapter for retrofitting existing housings.</li>
<li>Quick connect for use with EL770ICA, EL770RICA, EL76FICA, EL760ICA, EL760RICA, EL570ICA, EL570RICA, EL56FICA, EL560ICA, ELR560ICA.</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.</li>
<li>For use with IC and Non-IC housings. Spun aluminum for greater heat dissipation.</li>
<li>High quality powder coat finish preventing rust and paint cracking.</li>
<li>Extremely accurate color rendering with 93+ CRI.</li>
<li>Lumen maintenance of 50,000 hours L70 life based on LM80 standardized tests results.</li>
<li>Superior thermal management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.</li>
<li>Works with 120V Triac and ELV type dimmers. Dims down to 10%.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>RoHS Compliant</li>
<li>Energy Star Certified</li>
<li>CA Title 24 JA8-2019 Compliant</li>
<li>UL Listed for Damp locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>13 Watts</li>
<li>1,000lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>5"/6" Recessed LED Insert</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>
Recessed, Round LED Adjustable Gimbal with 5-CCT Switch</td>
</tr>
<tr bgcolor="#fefefe">
<td>Beam Angle/Adjustability</td>
<td>60°/25° Tilt/358° Rotation<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Base</td>
<td>PSA30 Medium Base (E26) Adapter</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Black/Black</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120 Volt</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens/Wattage</td>
<td>1,000LM/13 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>Avg. Rated Life L70/Warranty</td>
<td>50,000 Hours/5 Year Limited Factory Warranty<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
