MORE ABOUT THIS ITEM
DESCRIPTION

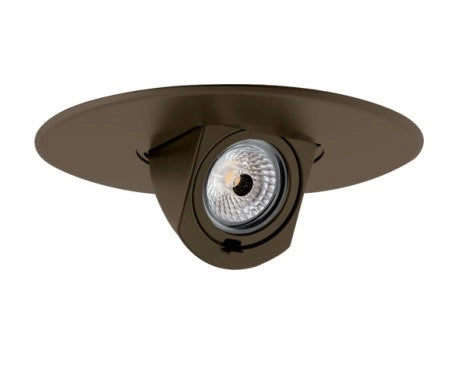

6" 0-10V Adjustable LED Inserts
The Ply System 0-10V dimmable LED Inserts are engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Designed to be used for New Construction or Remodel with ELCO Ply System Housings or as a retrofit with existing housings.
Triac/ELV/Dimmable
Wattage - 12.6 Watts
Voltage - 120/277v
Lumens - 900lm
Color Temperature - 3000K
Beam Angle - 36°
Rotation - 356°
Tilt - 65°
Finish - Bronze/Bronze

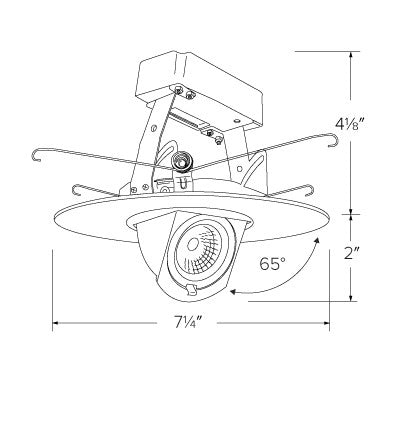

Outer Diameter - 7 1/4"
Maximum Height - 6 1/8"
- 0-10V/Triac/ELV Dimmable
- 120/277V Driver
- Interchangeable lenses available for multiple beam angles 36° Standard
- Optional: 20° (EP710C) and 60° (EP712C) Field Changeable optics: Sold Separately!
- Adjustability of 65° Tilt, 356° rotation
- 93+ CRI for extremely accurate color rendering
- 5 year factory warranty (limited)
- Energy Star Certified, RoHS Compliant
- UL Listed for Wet Location
- Life span of 50,000 hours L70
- Title 24 JA8-2019 Compliant, RoHS Compliant
<br />

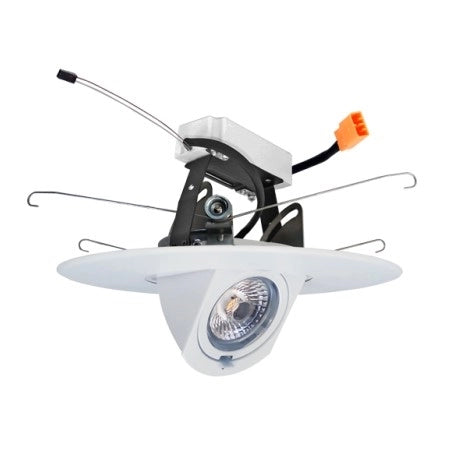

The ELCO 6" 0-10V Adjustable LED Insert<br />
<p>
<span style="font-weight: bold;">LED Driver</span>
</p>
<ul>
<li>Driver connects to 120/277V power supply</li>
<li>High efficiency driver with a power factor >0.9</li>
<li>Start time less than .75 seconds</li>
<li>No LED pixelation</li>
<li>Quick connect for use with EL76FICDXA, EL76FICDXA-B, EL760ICDXA, EL760ICDXA-B, EL760ICDXAEM, AND EL760RICDXA</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.</li>
<li>For use with IC and Non-IC housings. Diecast construction for lasting quality and greater heat dissipation.</li>
<li>High quality powder coat finish preventing rust and paint cracking.</li>
<li>Extremely accurate color rendering with 93+ CRI.</li>
<li>Lumen maintenance of 50,000 hours L70 life based on LM80 standardized tests results.</li>
<li>Superior thermal management by utilizing integral heat sink. Instant On to Full Brightness.</li>
<li>Works with 0-10V/Triac/ELV type dimmers. Dims down to 10%.</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>RoHS Compliant</li>
<li>Energy Star Certified</li>
<li>Title 24 JA8-2019 Compliant</li>
<li>UL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>12.6 Watts</li>
<li>900lm</li>
<li>93+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/0-10V/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>
Recessed LED Insert</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>
Recessed, 0-10V Adjustable LED Insert</td>
</tr>
<tr bgcolor="#fefefe">
<td>Warranty</td>
<td>
5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Base</td>
<td>Quick Connect/Torsion Springs</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Bronze/Bronze</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>93+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120/277 Volt</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens/Wattage</td>
<td>900LM/12.6 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Beam Angle/Adjustability</td>
<td>36°/65° Tilt/356° Rotation<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CCT</td>
<td>3000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
