MORE ABOUT THIS ITEM
DESCRIPTION

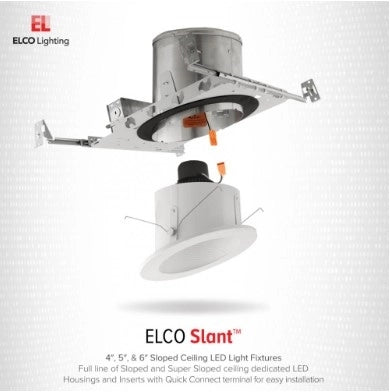

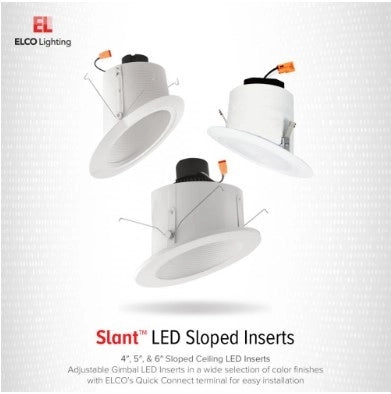

ELCO Slant has a full line of Sloped and Super Sloped ceiling dedicated LED housings and 4", 5" and 6" Inserts with Quick Connect terminal for easy installation. Adjustable gimbal LED Inserts with a wide selection of color finishes. Sloped ceiling LED inserts feature an integral gimbal for +25° adjustability. Compatible with most incandescent and electronic low voltage dimmers.

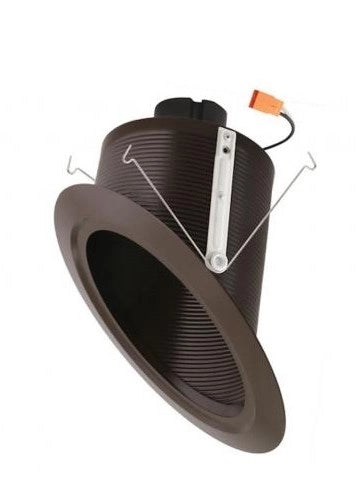

6" Super Sloped Ceiling LED Baffle Insert
Triac/ELV/Dimmable
Wattage - 18w
Voltage - 120v
Lumens - 1,200lm
Selectable CCT - 27/30/35/40/50K
Adjustable - +25° Integral Gimbal
Finish - Bronze/Bronze

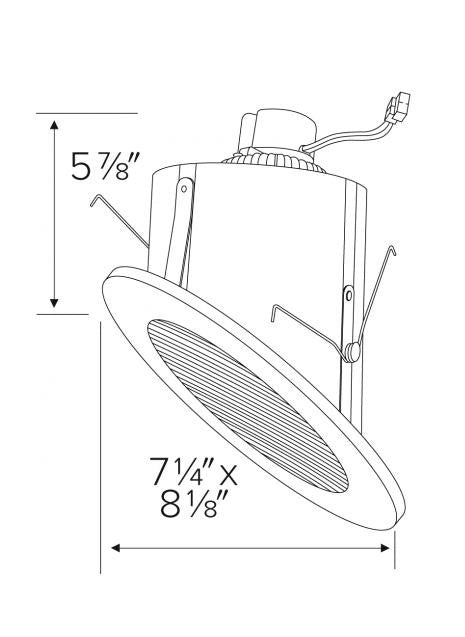

Height - 5 7/8"
Width/Diameter - 7 1/4" x 8 1/8"
- Sloped ceiling LED inserts feature an integral gimbal for +25° tilt adjustability
- Deep baffle trim with torsion springs to be held into housing
- Designed to install in ELCO 6" Super Sloped ceiling housings with torsion spring brackets
- For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function
- Compatible with most incandescent and electronic low voltage dimmers
- Life Span: 50,000 hours (@ L70)
- 5 year factory warranty (limited)
- UL Listed Damp location, Energy Star Certified
- CA Title 24 compliant (JA8-2016-E)
<p style="background-color: rgb(255, 255, 255);">
</p>
<b>Technical/Installation/Electrical</b><br />
<ul style="background-color: rgb(255, 255, 255);">
<li>Driver Connects to 120VAC power supply</li>
<li>High efficiency, high power factor >0.9 driver</li>
<li>Designed to install into ELCO 6" Super Sloped ceiling housing with torsion spring brackets</li>
<li>For retrofitting other manufacturers sloped ceiling cans always test the product to ensure proper fit and function</li>
<li>Superior Thermal Management by utilizing aluminum diecast heat sink</li>
<li>Deep baffle trim with torsion springs to be held into the housing with torsion spring brackets</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Compatible with most incandescent and electronic low voltage dimmers</li>
<li>LED light engine has frosted polycarbonate lens with reflector to diffuse light evenly while reducing glare</li>
<li>Integral gimbal allows for 25° adjustability to match slope</li>
<li>High quality powder coat finish preventing rust and paint cracking on metal parts</li>
<li>Dimmable with most standard Triac and ELV type dimmers</li>
<li>Dimming range of 100% down to 10% (dimming range may vary depending on dimmer model)</li>
<li>For full list of dimmers refer to the Dimmer Compatibility List</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings & Certifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Damp Locations</li>
<li>California Title 24 JA8 (2016-E) Compliant, Energy Star Certified</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>18 Watts</li>
<li>1,200 Lumens</li>
<li>90+ CRI</li>
<li>25 degree tilt adjustability</li>
<li>Compatible Housings: EL971ICA, EL971RICA</li>
</ul>
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>18 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>LED/Super Sloped/Baffle Insert</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>ELCO</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Warranty/Hours</td>
<td>5 Year Factory Warranty (Limited)/50,000 Hours (@ L70)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Insert Color</td>
<td>Bronze/Bronze</td>
</tr>
<tr bgcolor="#fefefe">
<td>CRI</td>
<td>90+</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>1,200LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Listings</td>
<td>UL Listed for Damp Locations, CA Title 24 JA8-2016-E Compliant, Energy Star Certified</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Dimensions</td>
<td>See Illustrations/Spec Sheet</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
