ELCO ELK0727-FC - Koto Focus LED Module - 10W - 120V - 2700K - Adjustable Beam Angle - Black

$109.05

ELCO ELK0727-FC - Koto Focus LED Module - 10W - 120V - 2700K - Adjustable Beam Angle - Black

Name: ELCO ELK0727-FC - Koto Focus LED Module - 10W - 120V - 2700K - Adjustable Beam Angle - Black
Brand: Elco Lighting
SKU: ELK0727-FC
Price: 109.05 USD
Availability: InStock

Low stock

Part Number: ELK0727-FC

<p class="pdf-attach">
<a href="https://www.elcolighting.com/printpdf/products/koto-led-module-5-cct-switch-0">Download The Spec Sheet</a>
</p>

$109.05

Verified Reviews

Free Shipping Over $500

Secure Checkout

PAYMENT OPTIONS

MORE ABOUT THIS ITEM

Part Number: ELK0727-FC

When you need absolute precision for accent lighting, the ELCO ELK0727-FC Koto Focus LED Module from USA Light is your ultimate tool.

Works with 2", 3", 4", & 6" ELCO Recessed Housings with Koto Twist-&-Lock Trims.

Triac/ELV Dimmable

Wattage - 10w
Voltage - 120v

Color Temp - 2700k
Lumens - 770lm
Adjustable Beam Angle - 18°-50°
CRI - 95+
Finish - Black

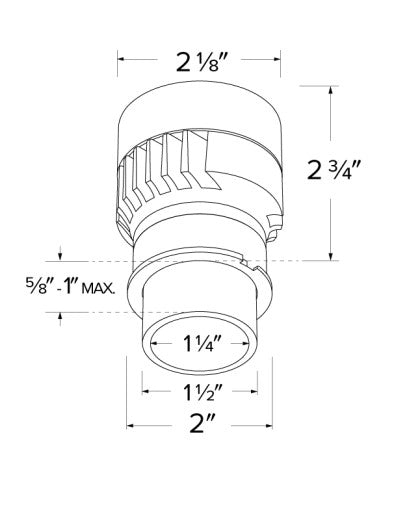

Base Diameter - 2 1/8"
Body Height - 2 3/4"
Lens Diameter - 2"

This 10W, 120V module delivers a warm 2700K light, perfect for creating an inviting atmosphere. The primary reason to buy this is its unique "Focus" feature: you can manually adjust the beam angle from a tight 21-degree spot to a wide 55-degree flood. This gives you unparalleled control, allowing you to perfectly highlight artwork, retail displays, or architectural features. It's an essential component for high-end modern interior lighting and specification-grade commercial LED lighting. As part of one of the best recessed lighting modular systems, this Koto Focus module is a go-to for designers. Professionals who shop wholesale lighting supply rely on these advanced lighting and electrical supplies for their most critical projects. Order today.

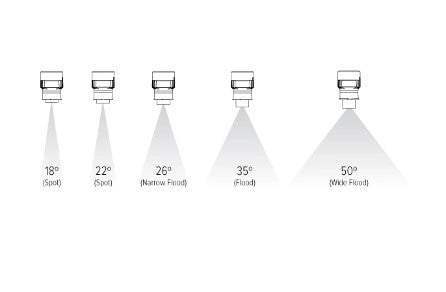

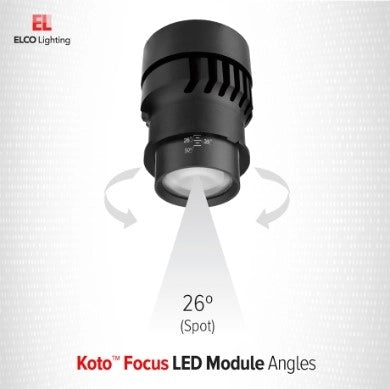

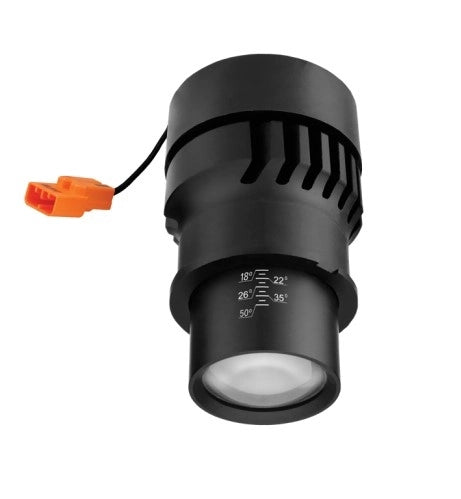

Adjustable focus: 18° to 50° with a simple twist of the lens
Integrated 120V dimmable driver Triac/ELV
Excellent color rendering 95+ CRI
Works in 2", 3", 4", 6" ELCO Housings with Koto twist-&-lock trims
Optional: ELCO White Snoot (ELKFCW) for Koto Focus LED Modules: Sold Separately!
Covered by U.S. Patents and Patents Pending
5 year factory warranty (limited)
UL Listed Damp Location, UL Listed w/Wet Location Trims
RoHS Compliant, Meets CA Title 24 JA8-2016-E Standards

<p style="background-color: rgb(255, 255, 255);">
</p>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology</li>
<li>Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allows for efficient cooling</li>

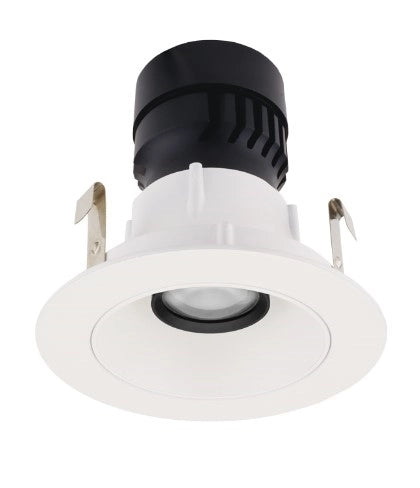

<li>Installation: Twist-lock design for tool-less trim installation, for use with Koto trims only. Can be used in 2", 3", 4", & 6" housings with quick connect base</li>
<li>Electrical: Module connects to 120 power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds</li>
<li>Delivered Lumens: 770lm. Works with 120V Triac/ELV type dimmers. Dims down to 10%. Industry leading dimming that dims smoothly with no hot spots or flickering</li>
<li>LED Technology: Extremely accurate color rendering index of 95+. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results</li>
<li>Superior Thermal Management by utilizing integrated heat sink. Instant on to full brightness technology. No LED Pixilation.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Damp Location. UL Listed w/Wet Location Trims</li>
<li>Energy Star Certified. Title 24 JA8-2019 Compliant.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>10 Watts</li>
<li>770 Lumens</li>
<li>Black</li>
<li>Adjustable Focus: 18° to 50° with a simple twist of the lens</li>
</ul>

<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Recessed Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Koto Focus LED Module</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer</td><td>ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td><td>95+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Black</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>770LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>10 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Adjustable Beam Angle</td>
<td>18° To 50°<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Listed</td>
<td>Damp Location/Wet Locations with Select Trims</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Color Temperature
</td>
<td>2700K</td>
</tr>
<tr bgcolor="#fefefe">
<td>Warranty</td>
<td>5 Year Factory Warranty (limited)</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
