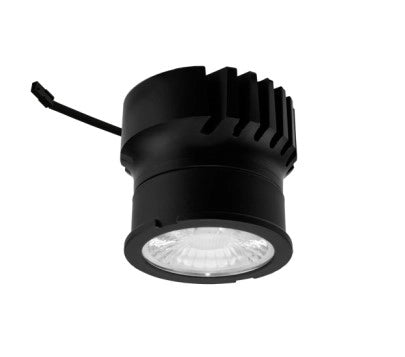

ELCO ELK2127D - Koto Architectural LED Light Engine - 1,360 Max. Lumens - 2700K - Interchangeable Lenses - Black

$50.35 $54.50

ELCO ELK2127D - Koto Architectural LED Light Engine - 1,360 Max. Lumens - 2700K - Interchangeable Lenses - Black

Name: ELCO ELK2127D - Koto Architectural LED Light Engine - 1,360 Max. Lumens - 2700K - Interchangeable Lenses - Black
Brand: Elco Lighting
SKU: ELK2127D
Price: 50.35 USD
Availability: InStock

In stock

Part Number: ELK2127D

<p class="pdf-attach">
<a href="https://www.elcolighting.com/printpdf/products/koto-architectural-led-light-engine">Download The Spec Sheet</a>
</p>

$50.35 $54.50

Verified Reviews

Free Shipping Over $500

Secure Checkout

PAYMENT OPTIONS

MORE ABOUT THIS ITEM

Part Number: ELK2127D

Works with 2", 3", & 4" Koto Architectural Recessed Housings and Koto Trims.

Dimmability Based on Housing

Color Temp - 2700K
Lumens - 1,360 Max. Lumens
Beam Angle - 38°
CRI - 95
Finish - Black

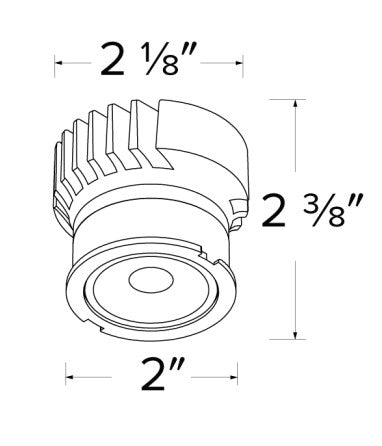

Base Diameter - 2 1/8"
Height - 2 3/8"
Lens Diameter - 2"

Transform your space with the immense power of the ELCO ELK2127D Koto™ Architectural LED Light Engine, a high-performance solution that delivers up to 1,360 lumens. This 2700K warm white engine is the definitive choice for the best recessed lighting in rooms with soaring ceilings or large architectural volumes. When you choose to shop with us over the other guy, you benefit from our deep product expertise, dedicated customer support, and a commitment to stocking genuine ELCO components that ensure your project stays on schedule.

This engine provides the best interior lighting for grand great rooms and hotel lobbies, ensuring every corner is bathed in a rich, 95+ CRI glow. Its architectural-grade construction also allows it to serve as the best exterior lighting for expansive covered entryways. Compatible with 2-inch, 3-inch, 4-inch, or 6-inch recessed housing, it features interchangeable lenses for total beam precision. For professionals sourcing wholesale light bulbs and elite light engines, the ELK2127D offers unmatched brilliance and a 50,000-hour rated life. Shop today.

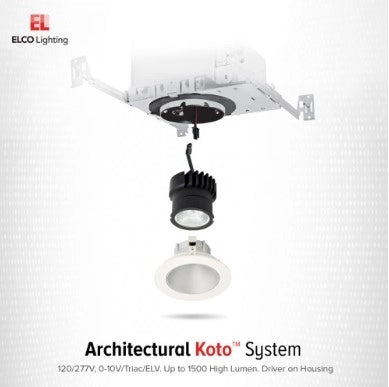

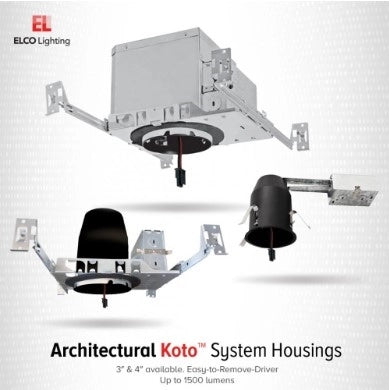

Light Engine used with Koto Architectural Housings
See Koto Architectural housings for lumen output options. Final lumen output is determined by housing.
Driver on housing extends lifespan and allows for more dimming and EM options
Excellent color rendering 95+ CRI
Works in 2", 3", & 4" ELCO Housings with Koto twist-&-lock trims

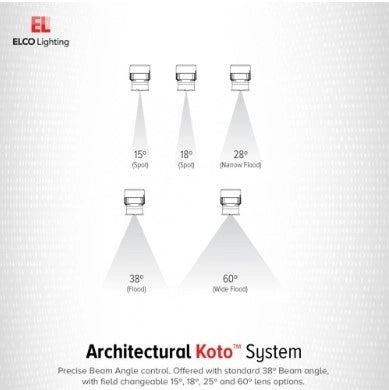

Standard 38° Lens installed, 25° and 60° lens included with each module
Optional Lens: 18° (EP731C)
Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter (L50)
Sunset option dims from 3000K to 1800K
Dimmability based on housing
Lifespan of 50,000 hours L70
Covered by U.S. Patents and Patents Pending
5 year limited factory warranty
UL Listed Damp Location, UL Listed w/Wet Location Trims
Energy Star Certified, Title 24 JA8-2019 Compliant

<p style="background-color: rgb(255, 255, 255);">
</p>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Optics: PC lens diffuses light evenly throughout while reducing glare with LED COB technology</li>
<li>Construction: Diecast aluminum body with heat fins allows for efficient cooling</li>

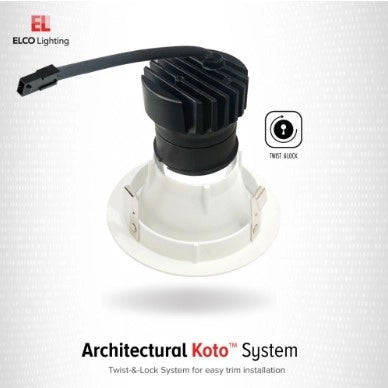

<li>Installation: Twist-lock design for tool-less trim installation, for use with Koto trims only. Can be used in 2", 3", & 4" Architectural Koto housings only.</li>
<li>Compatible Housings: See Spec Sheet for compatible housing list or accessories at bottom of page.</li>
<li>Dimmability: Based on housing</li>
<li>LED Technology: Extremely accurate color rendering index of 95+. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results</li>
<li>Superior Thermal Management by utilizing integrated heat sink. Instant on to full brightness technology. No LED Pixilation.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Damp Location. UL Listed w/Wet Location Trims</li>
<li>Energy Star Certified. Title 24 JA8-2019 Compliant.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>38 Degree Beam Angle</li>
<li>1,360 Max. Lumens</li>
<li>Black</li>
<li>95+ CRI</li>
</ul>

<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Based On Housing</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Recessed Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Koto Architectural LED Light Engine</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer/Warranty</td><td>ELCO Lighting/5 Year Limited Factory Warranty</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td><td>95+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Black</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>1,360 Max. Lumens</td>
</tr>
<tr bgcolor="#fefefe">
<td>Listed</td>
<td>Energy Star Certified, CA Title 24 JA8-2019 Compliant, UL Listed Damp Locations, UL Listed Wet Locations With Select Trims</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Beam Angle</td>
<td>38°<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Compatibility</td>
<td>2", 3", & 4" ELCO Architectural Housings</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Color Temperature
</td>
<td>2700K</td>
</tr>
<tr bgcolor="#fefefe">
<td>Material</td>
<td>Diecast Aluminum Body</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
