<p class="pdf-attach">
<a href="https://www.elcolighting.com/printpdf/products/6-ultra-slim-led-round-panel-light">Download The Spec Sheet</a>
</p>
$29.65
Verified Reviews
Free Shipping Over $500
Secure Checkout
PAYMENT OPTIONS
Payment methods
PayPalVisaMastercardDiscover
MORE ABOUT THIS ITEM
DESCRIPTION
Part Number: ERT61130BZ

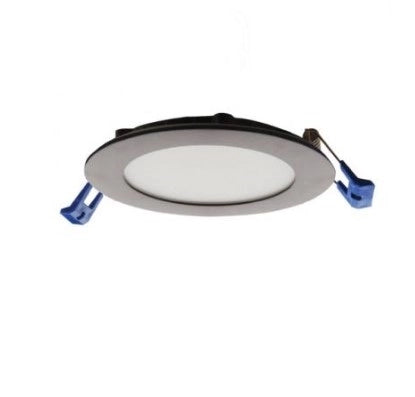

6" Ultra Slim LED Round Panel Light. This 6" ultra slim panel light is designed for quick and easy installation without a housing for both new construction and remodel applications. This IC-rated fixture can be installed indoors or outdoors and delivers a smooth light output of 700 lumens, in 3000K or 4000K
Triac/ELV Dimmable
Wattage - 12w Voltage - 120v Lumens - 750lm Color Temp - 3000K Rated Life - 50,000 hours Finish - Bronze
Aluminum die-cast trim ring with durable powder coat finish
Designed to fit in plenums as shallow as 2"
Eliminates the need for housing
New construction application requires a mounting plate or frame
Remodel applications require no additional accessories
Suitable installation for t-grid and drop ceiling applications
Driver connects directly to 120V power supply
Replaces 70 watt incandescent

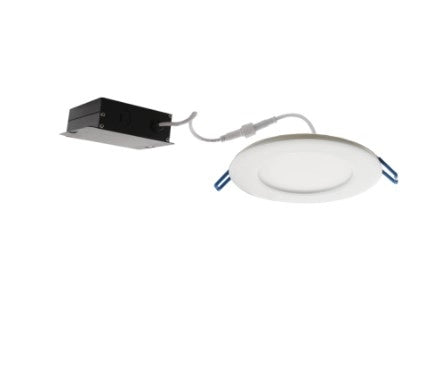

Includes driver and Jbox
5 year factory warranty (limited)
ETL Listed for Wet Locations indoors or outdoors
Meets ENERGY STAR requirements
IC Airtight (ASTM E283-2004) for direct contact with insulation
CA JA8 Title 24 Compliant
<br />

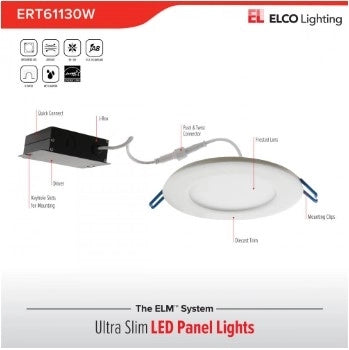

The ELCO 6" Ultra Slim LED Round Panel Light with 5-CCT Switch.
<p>
<span style="font-weight: bold;">LED Driver</span>
</p>
<ul>
<li>Driver connects directly to 120V power supply. Includes driver and Jbox</li>
<li>Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pry-out</li>
<li>IC rated driver and fixture are tested and approved for direct contact with insulation</li>
<li>Standard input wattage is 12W, 58 lumens per watt. Replaces 70 watt incandescent</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Polycarbonate lens diffuses light evenly throughout space with no LED pixelation</li>
<li>Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking</li>
<li>Plenum rated cable connector to connect from module to remote driver box</li>
<li>Designed for super shallow ceiling plenums without any housing. Maximum hole size should not exceed 6 1/4" for this product</li>
<li>High strength steel spring clip for easy installation. Hole cut out template provided for proper trim installation</li>
<li>Works with 120V Triac and ELV type dimmers. Dims down to 10%</li>
<li>For full list of dimmers, refer to ELCO ELM System Dimmer Compatibility list</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>IC-Rated Airtight (ASTM E283-2004) for direct contact with insulation</li>
<li>Meets ENERGY STAR requirements</li>
<li>Indoors or Outdoors</li>
<li>CA Title 24 Compliant</li>
<li>ETL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>12 Watts</li>
<li>750 Lumens</li>
<li>90+ CRI</li>
</ul>
<br />
