MORE ABOUT THIS ITEM
DESCRIPTION

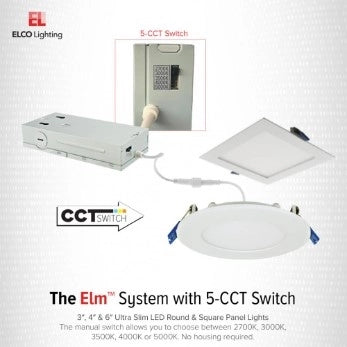

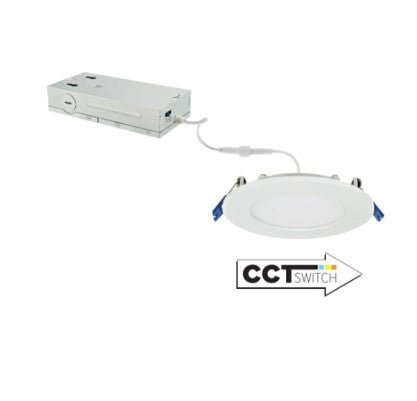

6" Ultra Slim LED Round Panel Light with 5-CCT Switch. This unique 6" ultra slim panel light is designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 35000K, 4000K, and 5000K. This IC-rated fixture can be installed indoors or outdoors.
Triac/ELV Dimmable
Wattage - 15w
Voltage - 120v
Lumens - 950lm
Selectable CCT - 27/30/35/40/50K
Rated Life - 50,000 hours
Finish - White
- Aluminum die-cast trim ring with durable powder coat finish
- Designed to fit in plenums as shallow as 2"
- Eliminates the need for housing
- New construction application requires a mounting plate or frame
- Remodel applications require no additional accessories
- Suitable installation for t-grid and drop ceiling applications
- Driver connects directly to 120V power supply
- Includes driver and Jbox
- 5 year factory warranty (limited)
- ETL Listed for Wet Locations indoors or outdoors
- Meets ENERGY STAR requirements
- IC Airtight for direct contact with insulation
- CA JA8 Title 24 Compliant
<br />
The ELCO 6" Ultra Slim LED Round Panel Light with 5-CCT Switch.
<p>
<span style="font-weight: bold;">LED Driver</span>
</p>
<ul>
<li>Driver connects directly to 120V power supply.</li>
<li>Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pry-out</li>
<li>IC rated driver and fixture are tested and approved for direct contact with insulation</li>
<li>Includes driver and Jbox</li>
</ul>
<p>
<span style="font-weight: bold;">Features</span>
</p>
<ul>
<li>Polycarbonate lens diffuses light evenly throughout space with no LED pixelation</li>
<li>Aluminum die-cast trim ring with durable powder coat finish preventing rust and paint cracking</li>
<li>Plenum rated cable connector to connect from module to remote driver box</li>
<li>Designed for super shallow ceiling plenums without any housing.</li>
<li>High strength steel spring clip for easy installation. Hole cut out template provided for proper trim installation</li>
<li>Works with 120V Triac and ELV type dimmers. Dims down to 10%</li>
<li>For full list of dimmers, refer to ELCO ELM System Dimmer Compatibility list</li>
</ul>
<p>
<span style="font-weight: bold;">Listings</span>
</p>
<ul>
<li>IC-Rated Airtight for direct contact with insulation</li>
<li>Meets ENERGY STAR requirements</li>
<li>Indoors or Outdoors</li>
<li>CA Title 24 Compliant</li>
<li>ETL Listed for Wet locations</li>
</ul>
<p>
<span style="font-weight: bold;">Specifications</span>
</p>
<ul>
<li>15 Watts</li>
<li>950 Lumens</li>
<li>90+ CRI</li>
</ul>
<br />
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" align="left" bgcolor="#f0f0f0">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>
Recessed Lighting LED Retrofit Trim
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>
Recessed, Ultra Slim Round Panel Light</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer
</td>
<td>
ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Warranty
</td>
<td>5 year factory (limited)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td>
<td>90+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage Rating</td>
<td>
120 Volt</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>950LM</td>
</tr>
<tr bgcolor="#fefefe">

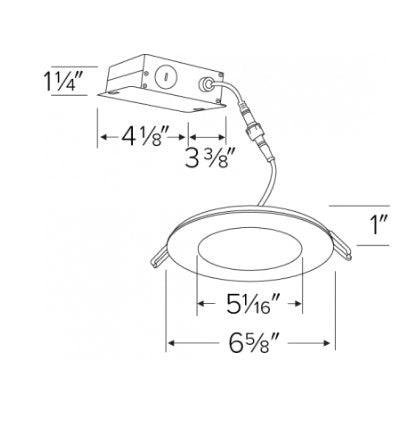

<td>
Dimensions</td>
<td>See Illustrations/Spec Sheet</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>2700K - 3000K - 3500K - 4000K - 5000K</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
