MORE ABOUT THIS ITEM
DESCRIPTION
All track fixtures have adjustable adapters to be used with 120V Single (1) or Double (2) Circuit Track.
Triac/ELV/Dimmable
Selectable Wattage - 7/10/14w
Voltage - 120v
Selectable Color Temp - 27/30/35/40/50K
Lumens - 650/950/1,250lm
Beam Angle - 36°
Adjustability - 90° Vertical Adjustment With 358° Rotation
Finish - Black

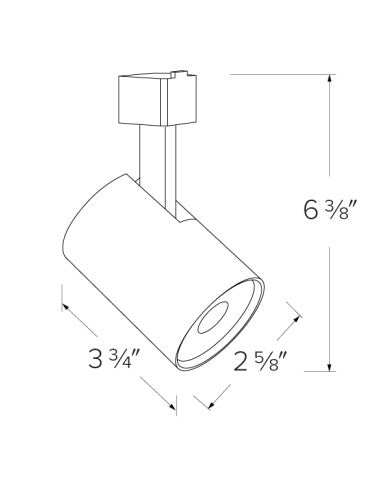

Track Head Length - 3 3/4"
Track Head Diameter - 2 5/8"
Fixture Height - 6 3/8"

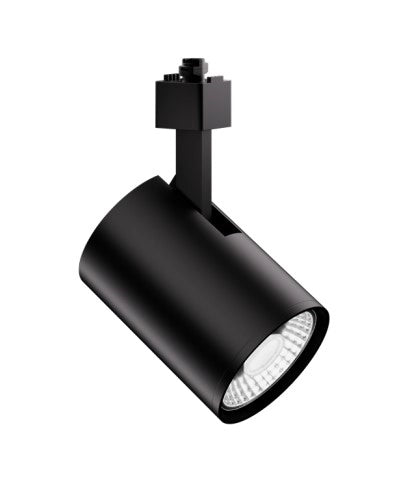

- Diecast aluminum track fixture with integrated driver
- Manual 5-CCT and 3-Wattage Switch available in fixture
- Triac and ELV dimmable down to 10%
- Use with ELCO 120V Single (1) or Double (2) Circuit track
- 50,000 hours life-span
- Includes: 36° Standard Beam angle (installed), and field changeable 24° lens in the box
- 5 year limited factory warranty
- Standard H Style: for J or L style use - PJTLO (W,B) for Juno Tip or PLTHI (W, B) for Lightolier tip (must be factory adapted)
<b>Construction:</b> Full die-cast construction for exceptional heat management and lasting quality. Powder coat white and black matte finishes.<br /><b>Adjustability:</b> Track head is adjustable 90° vertical with 358° rotation.<br /><b>Optics:</b> Lens provides smooth lumen output at standard 36° (Installed), field changeable 24° lens in box.<br /><b>Installation:</b> Effortlessly installed into H-Style track from ELCO or others. Compatible with Single (1) or Double (2) circuit track. Can be special ordered as J-Style (requires PJTLO W/B) or L-Style (requires PLTLO W/B).<br /><b>LED Technology:</b> Extremely accurate Color Rendering Index of 93+ CRI. Lumen maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Instant On to full brightness technology. Chip on board LED design results in a smooth lumen output with no LED pixilation.<br /><b>Electrical:</b> Driver is rated for 120V input. High Efficiency driver with a power factor >0.9.<br /><b>Dimmability:</b> Triac and ELV dimmable down to 10%. Flicker-Free Dimming.<br />
TECHNICAL SPECIFICATIONS
<table width="100%" class="tech_specs_table" cellspacing="0" style="background-color: rgb(242, 243, 244); font-size: 16px;"><tbody><tr><th colspan="2" bgcolor="#f0f0f0" align="left">Tech Specs</th></tr><tr></tr><tr bgcolor="#fefefe"><td></td><td></td></tr><tr bgcolor="#f0f0f0"><td width="28%">Item Style</td><td width="72%">LED Packer Track Fixture</td></tr><tr bgcolor="#fefefe"><td>Selectable CCT</td><td>2700K/3000K/3500K/4000K/5000K</td></tr><tr bgcolor="#f0f0f0"><td>Item Type</td><td>LED Track Fixture</td></tr><tr bgcolor="#fefefe"><td>Manufacturer</td><td>ELCO Lighting</td></tr><tr bgcolor="#f0f0f0"><td>Adjustability</td><td>90° Vertical Adjustment/358° Rotation<br /></td></tr><tr bgcolor="#fefefe"><td>Manufacturer Warranty</td><td>5 Year Limited Factory Warranty</td></tr><tr bgcolor="#f0f0f0"><td>Compatible Track</td><td>Standard H-Style, For J-Style or L-Style Use - PJTLO (W,B) for Juno Tip or PLTHI (W, B) For Lightolier Tip (Must Be Factory Adapted)</td></tr><tr bgcolor="#fefefe"><td>Lumens</td><td>650LM/950LM/1,250LM</td></tr><tr bgcolor="#f0f0f0"><td>Voltage Input</td><td>120V</td></tr><tr bgcolor="#fefefe"><td>Color</td><td>Black Matte</td></tr><tr bgcolor="#f0f0f0"><td>Selectable Wattage</td><td>7 Watts/10 Watts/14 Watts</td></tr><tr bgcolor="#fefefe"><td>CRI</td><td>93+</td></tr><tr bgcolor="#f0f0f0"><td>Voltage Type</td><td>120V</td></tr><tr bgcolor="#fefefe"><td>Dimmable</td><td>YES/Triac/ELV</td></tr><tr bgcolor="#f0f0f0"><td>Track Head Length</td><td>3 3/4"</td></tr><tr bgcolor="#fefefe"><td>Track Head Diameter</td><td>2 5/8"</td></tr><tr bgcolor="#f0f0f0"><td>Beam Angle</td><td>36° Standard (Installed), Field Changeable 24° Included In Box<br /></td></tr></tbody></table>
