DESCRIPTION
ITEM NOT QUALIFIED FOR FREE SHIPPING!
0-10V/Dimmable (Dim-To-Off/Flicker Free)
Selectable Wattage - 60/45/30w
Voltage - 120-277v
Lumens - 7,200/5,400/5,040lm
Selectable CCT - 27/30/35/40/50K
Beam Angle - 110°
Projected Life (L70) - 50,000 Hours
Finish - White
Length - 6' (ft)
Width - 2"
Height - 4"

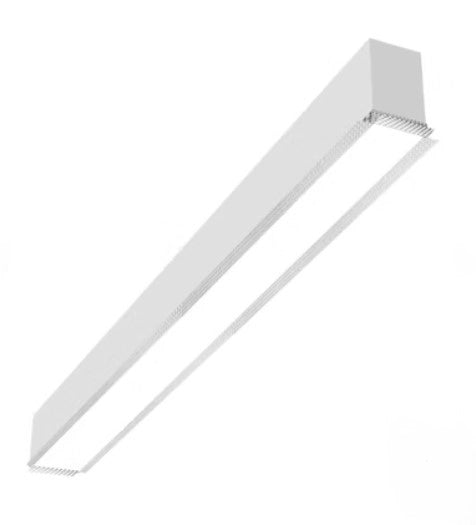

Redefining modern spaces requires the sleek, seamless integration provided by the EnVisionLED LED-ALIN2-6FT-3P75-D-5CCT-WH-TML - ARCY-LINE: 6' Architectural Linear Fixture (Trimless) from USA Light. This expansive 6-foot fixture offers a high-end, plaster-in look that surpasses the capabilities of standard low-voltage interior lighting by providing powerful, primary illumination. As a centerpiece for indoor office lighting, this trimless white fixture creates a continuous line of light that appears to be part of the ceiling itself.
- The EnVisionLED ARCY-Line Architectural Linear Fixtures (Trimless) offer a 2" sleek and modern appearance with symmetrical light distribution. They can be surface, wall, recess, trim-less, or pendant mounted.
- Lens: Acrylic Frosted Lens Standard: efficiently emits the light through a high-quality acrylic lens, spreading it evenly and without causing glare - Optional Louver available (added fee's may apply)
- One piece aluminum extrusion housing that incorporates a precisely cut, smooth white extruded frosted lens that securely attaches to the body and allows easy removal for accessing the driver and LED board when needed.
- Solid aluminum end caps are included, Finished with corrosion free powder coat
- Fixture is pre-wired for daisy chain, No additional wiring is required for continuous run, Connector Brackets to link fixtures in a continuous run is included, Trimless Mount (can be serviced from below ceiling)
- ETL Listed, DLC Standard Listed, Approved For CA T24, FCC CFR 47, GCC Part 15, Subpart B:2017, IP Rating: Damp Location (IP44)
- 5 year limited factory warranty
<b>Pre-Installed Factory Add-On's (Fee's and Lead Times Vary):</b><br /><br />90 Minute Emergency Backup<br />Bi-Level Motion and Daylight Sensor<br />SG-20KV-UNV: 20KV Surge Protector<br />Paint: Black, White, Gray Standard. Custom RAL Available<br /><br /><b>Call Our Customer Service Line For More Information: 1-877-235-0020</b>
TECHNICAL SPECIFICATIONS
<br />
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Voltage Rating/Type</td>
<td width="72%">
120-277V</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable Wattages</td>
<td>60 Watts/45 Watts/30 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Dimmable</td>
<td>YES/0-10V/Dim-To-OFF/Flicker Free</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Lumens
</td>
<td>7,200LM/5,400LM/5,040LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
CRI
</td>
<td>>90</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Projected Life (L70)</td>
<td>50,000 Hours
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Thermal</td>
<td>
-4°F to 122°F</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Lens</td>
<td>Frosted Acrylic</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
