MORE ABOUT THIS ITEM
DESCRIPTION
0-10V/Triac/ELV/Dimmable
Selectable Wattage - 30/20/15w
Voltage - 120-277v
Selectable CCT - 27/30/35/40/50K
Beam Angle - 80° Flood
Avg. Rated Life (L70) - 70,000 Hours
Finish - White/White
Height - 5.25"
Inner Diameter - 5.5"
Outer Diameter - 8 3/8"

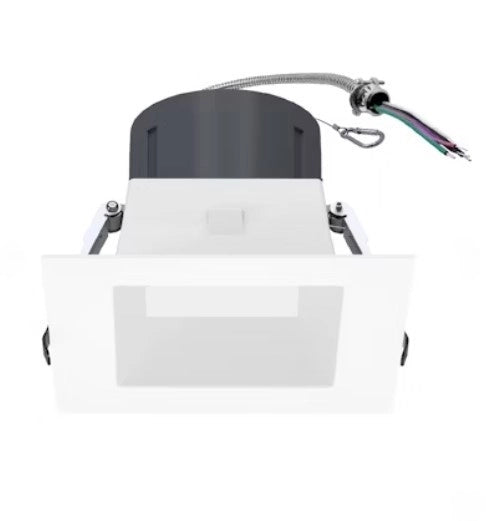

- EnVisionLED 6" CMD-Line: Square Commercial Downlight has a metal housing and trim for better heat dissipation.

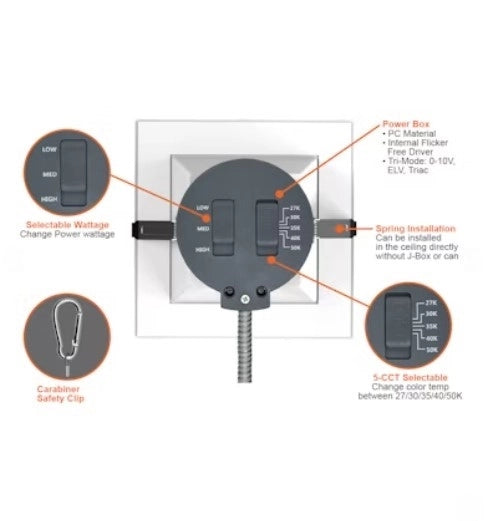

- SnapTrim Can-less: Springs clips with remote j-box eliminates can, Lens: Frosted PC, Non-yellowing
- No housing needed in remodel applications, tension clips mount into 1/2" and 1.5" thick ceiling
- This fixture does not fit into a recessed can, Optional: New Construction plate available (sold separately), Cut Out Dimensions: 7-9/10""
- Can be removed from below the ceiling for service and replacement
- Pre-wired junction box with circuit wiring built in (3 in/3 out), 3 Step MacAdam Ellipses, Finish: White Reflector (Smooth) Standard, Optional Trims available (sold separately)
- Deep reflector lens reduces glare and optimizes even beam distribution
- 26" integral flex whip included on each fixture, Carabiner safety clip on each fixture, Built-In 2.5Kv Surge Protector, Flicker Free
- ETL Listed, Energy Star Certified, CA Title 24 JA8-2022 CEC Listed, Wet Location Rated, FCC CFR 47, GCC Part 15, Subpart B:2017, NON-IC Rated and ASTM-E283 Air-Tight, Complies with UL 263, ASTM E119, CAN ULC S101
- 5 Year Limited Factory Warranty
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
YES TRI: 0-10V/ELV/Triac</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>
Recessed Lighting LED Retrofit Trim
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>6" LED Square Commercial Downlight</td>
</tr>
<tr bgcolor="#fefefe">
<td>Beam Angle</td><td>80°<br /></td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Manufacturer</td><td>EnVisionLED</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>
White/White</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>2,850LM/2,000LM/1,500LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable Wattage</td>
<td>30 Watts/20 Watts/15 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Warranty</td>
<td>5 Year Limited Factory</td>
</tr>
<tr bgcolor="#fefefe">
<td>CRI</td>
<td>>90</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage</td>
<td>120-277V</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
