DESCRIPTION

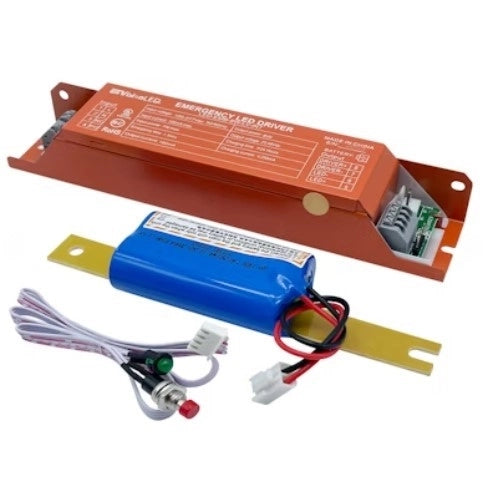

Emergency Battery Backup for External Drivers with Internal Housing Space.
Wattage - 8w
Output Power - 8W
Output Current and Voltage - 160-3200mA/25-48Vdc
Input Voltage - 100-277Vac, 50/60Hz
Emergency Time - 1.5 Hrs.
Test Switch Indicator Light - Illuminated Test Switch, Indicator Light
Charging Time - 24 Hrs.
Dimensions - See Spec Sheet
- Universal input voltage (100-277v AC, 50/60Hz)
- Meets most of the safety standards for lighting
- UL Listed, Dry Location, Standard CSA C22.2 NO. 141 UL924
- Battery protection: over charge protection, over discharge protection, short circuit protection
- The batteries meet the 500 cycles of standard charge and discharge
- For use with external driver w/internal housing space: wall packs, canopy, etc...
- Internal lithium battery, Indicator shows a variety of working modes
- 5 year limited factory warranty
<b>Operation:</b><br /><br /><b>AC Operation:</b><br />When AC power is present, the LED load from the LED driver is the normal power supply. AC LED driver output current can not exceed 2A. The emergency driver is charging in a standby mode. The green LED light is on to indicate that it is charging.<br /><br /><b>Emergency Operation:</b><br />When the AC power goes out the emergency driver detects the AC power outage and automatically switches to the working emergency mode. The green LED indicator light is off. When the AC power is restored the emergency driver switches back to AC power and starts re-charging, the green LED indicator light is back on.<br />
TECHNICAL SPECIFICATIONS
<table class="features_table" cellspacing="0" width="100%" style="background-color: rgb(242, 243, 244); font-size: 16px;"><tbody><tr><th colspan="2" align="left" bgcolor="#f0f0f0">Tech Specs</th></tr><tr></tr><tr bgcolor="#fefefe"><td></td><td></td></tr><tr bgcolor="#f0f0f0"><td width="28%">Item Type</td><td width="72%">Battery Backup</td></tr><tr bgcolor="#fefefe"><td>Listed</td><td>UL Listed</td></tr><tr bgcolor="#f0f0f0"><td>Input Voltage</td><td>100-277VAC, 50/60Hz</td></tr><tr bgcolor="#fefefe"><td>Charging Time</td><td>24 Hours</td></tr><tr bgcolor="#f0f0f0"><td>Backup Runtime</td><td>90 Minutes</td></tr><tr bgcolor="#fefefe"><td>Manufacturer</td><td>EnVisionLED</td></tr><tr bgcolor="#f0f0f0"><td height="17">Wattage</td><td>8 Watts</td></tr><tr bgcolor="#fefefe"><td></td><td></td></tr><tr bgcolor="#f0f0f0"><td>EnVisionLED</td></tr></tbody></table>
