MORE ABOUT THIS ITEM
DESCRIPTION
Part Number Description: CSP-40-CS-U-WH
0-10V/Dimmable
Wattage - 40w (175w equivalent)
Voltage - 120-347v
Selectable CCT - 30/40/50K
Selectable Lumens - 5,000-5,400lm
Rated Life L70: 100,000 Hours
Finish - White
Dimensions - 9.527" L x 9.527" W x 3.26" D

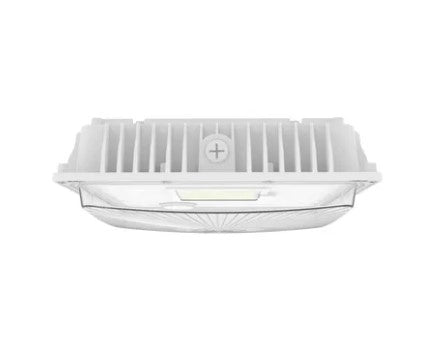

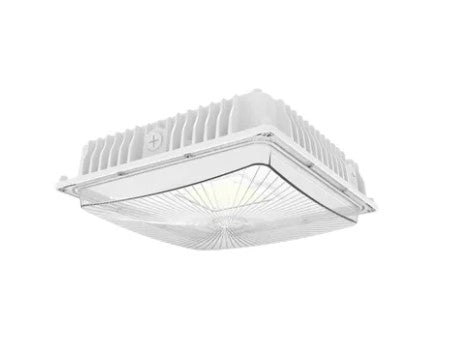

- The Halco ProLED Select Slim Canopy is a durable and high performing luminaire that is perfect solution for covered outdoor spaces.
- Low profile, compact design, Quick install mounting plate, Ceiling or pendant mount
- IK09 die-cast aluminum housing with integral heat sink, Built in 4kV surge protection
- Tamperproof and shatterproof polycarbonate lens, High efficiency, recessed optics for increased visual comfort
- RF Bi-Level occupancy sensing
- DesignLights 5.1 Premium, cULus, IP65 Rated, UL Listed for Wet Locations, FCC, RoHS Compliant
- 5 year limited factory warranty
TECHNICAL SPECIFICATIONS
<br />
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Voltage Rating
</td>
<td width="72%">120-347V
</td>
</tr>
<tr bgcolor="#fefefe">
<td>Built In Surge Protection</td>
<td>4kV</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable Wattage</td>
<td>40 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>Power Factor</td>
<td>
>0.9</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Rated</td>
<td>UL Listed for Wet Location</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable CCT</td>
<td>3000K/4000K/5000K</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens (Depends on CCT Setting)</td>
<td>5,000-5,400LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Lumens Per Watt</td>
<td>Up To 135</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
CRI
</td>
<td>>70</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Dimming</td>
<td>
0-10V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Equivalent</td>
<td>175 Watts</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Ambient Operating Temp Range
</td>
<td>
-40° C to 55° C</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Mount Type</td>
<td>Quick Install Mounting Plate</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
