MORE ABOUT THIS ITEM
DESCRIPTION

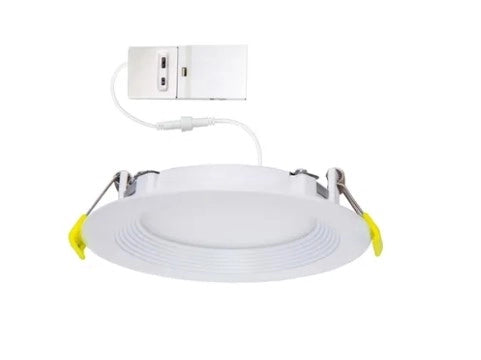

Description Part Number: CSDL-4-LS-CS-BT-DDV
Triac/ELV/0-10V/Dimmable
Selectable Wattage - 8/10/13w
Voltage - 120-277v
Selectable CCT - 27/30/35/40/50K
Beam Angle - Wide Flood
Avg. Rated Life (L70) - >50,000 Hours
Finish - White/Baffle
Dimensions - See Spec Sheet
- The Halco Commercial Slim Downlight family of fixtures are designed with the installer and end user in mind.
- Canless design with spring retention clips and remote mounted driver box, Aluminum housing
- Edge Lit LED design with frosted PMMA diffuser, Remote driver box with plenum rated quick connect cord
- cETLus Rated for Wet Locations, Air Tight Certified per ASTM E283-2004, IC Rated for Direct Contact with Insulation, Energy Star Rated, RoHS Compliant, FCC Part 15 Compliant, Title 24 Compliant
- 5 Year Limited Factory Warranty
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV/0-10V</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>Commercial Slim Downlight</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>4" Round Baffle Edge Lit LED Design</td>
</tr>
<tr bgcolor="#fefefe">
<td>Beam Angle</td><td>Wide Flood</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Manufacturer</td><td>Halco</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>
White/Baffle</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable Lumens</td>
<td>500LM/700LM/900LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Selectable Wattage</td>
<td>8 Watts/10 Watts/13 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Warranty</td>
<td>5 Year Limited Factory</td>
</tr>
<tr bgcolor="#fefefe">
<td>CRI</td>
<td>90</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>2700K/3000K/3500K/4000K/5000K</td>
</tr>
<tr bgcolor="#fefefe">
<td>Voltage</td>
<td>120-277V</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
