MORE ABOUT THIS ITEM
DESCRIPTION
Part Number: IGL17B
NON-Dimmable

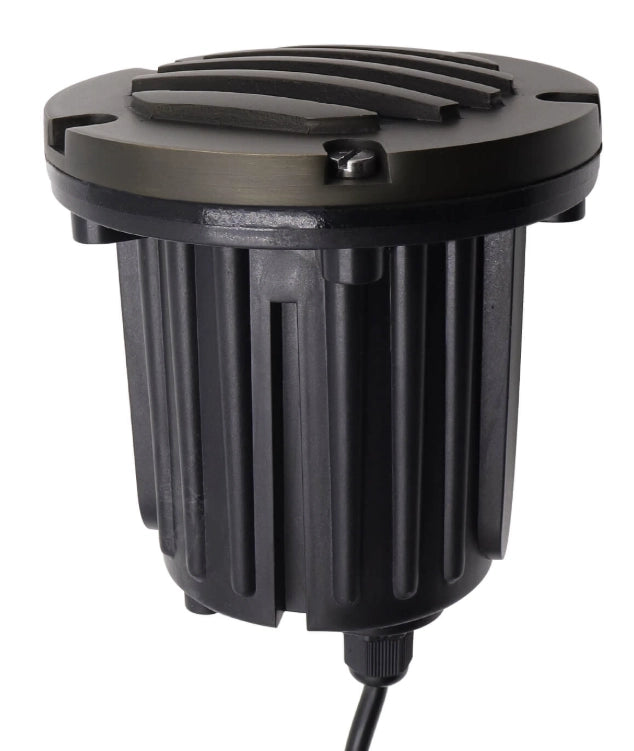

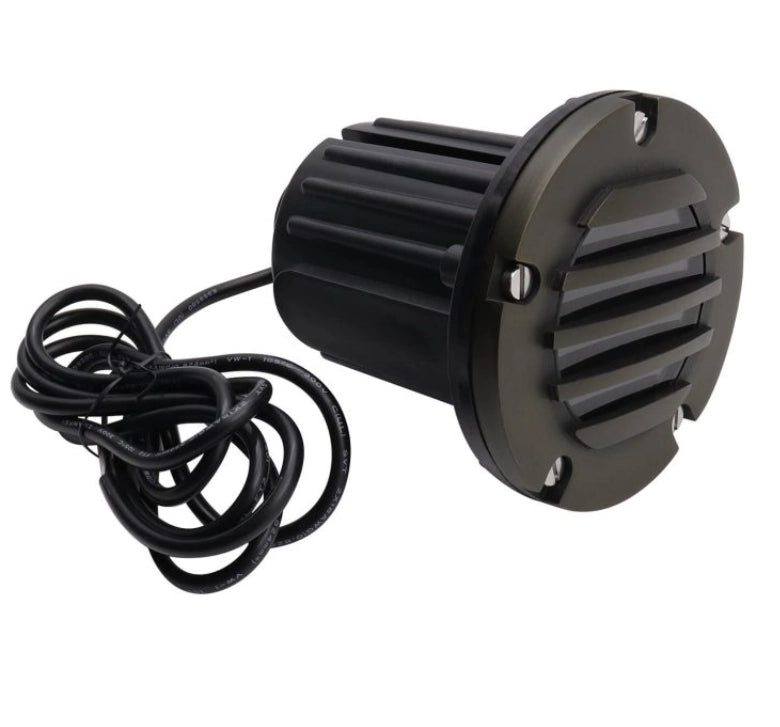

The CLS IGL17B Louvered Well Light is a rugged, professional-grade in-ground landscape fixture designed for applications requiring controlled, glare-free illumination. Built from solid cast brass with a durable bronze finish, this 12V well light features a louvered top that directs light downward and reduces glare, making it ideal for pathways, walkways, building entries, low-level architectural accents, and locations where visual comfort is important.
Its sealed internal chamber and corrosion-resistant housing ensures long-term durability against soil, moisture, mulch, turf, and harsh outdoor conditions. The flush in-ground design keeps the fixture discreet while providing refined, targeted lighting.
The IGL17B accepts MR16 LED or Halogen lamps (bulb not included), allowing installers to select beam angles, brightness levels, and color temperatures tailored to the project. Suitable for residential and commercial lighting environments, this fixture is backed by a Limited Lifetime Manufacturer Warranty.
Specifications
- Wattage: 20W Max
- Voltage: 12V
- Bulb Type: LED / Halogen (not included)
- Material: Solid Brass with 72" Wire Lead
- Base: MR16
- Finish: Bronze
Fixture Dimensions
- Width: 4.88"
- Height: 4.88"
Features
- Solid cast brass and composite construction with 72" wire lead
- Corrosion resistant non-metallic canister
- Specification grade, beryllium copper socket
- Premium grade direct-burial cable
- Anti-moisture connections
- Limited Lifetime Factory Warranty

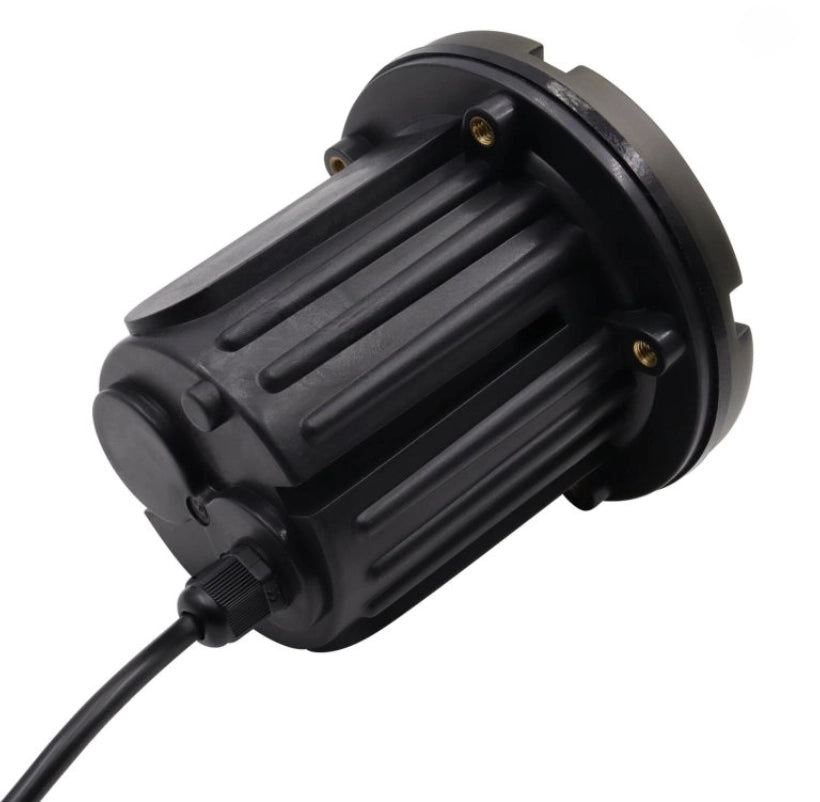

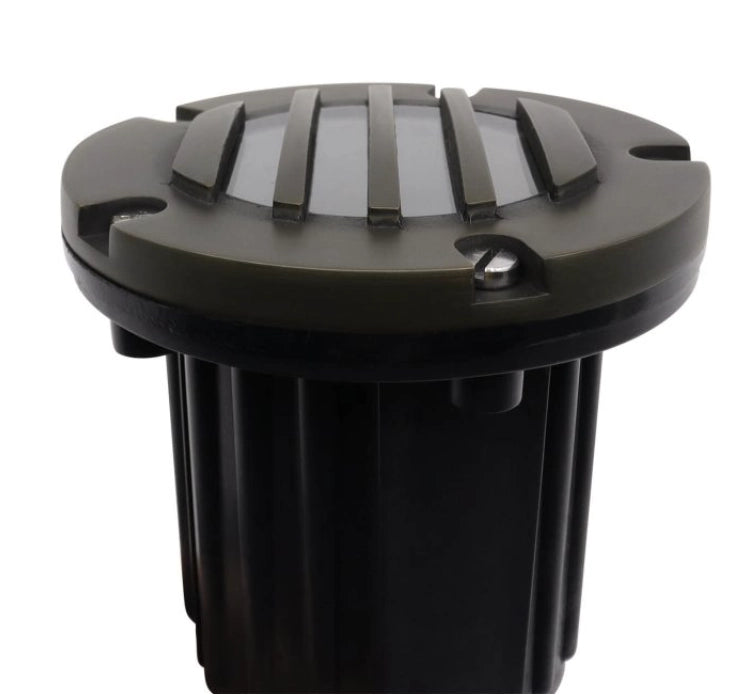

The CLS IGL17B is a sealed outdoor lighting louvered well light that uses an MR16 lamp (bulb not included). The socket is mounted on an adjustable gimbal so the lamp angle can be adjusted. The top is thick louvered solid cast brass. The commercial outdoor lighting application glass lens is flush with the top so water cannot puddle. There is a thick rubber gasket between the top and body on the well light for a water tight seal. The lower canister is completely sealed-the round lead wire uses a waterproof pressure fitting to insure water cannot enter from the bottom of the well light fixture. The IGL17B is a heavy duty durable commercial in-ground well light suitable for a variety of outdoor landscape projects.
TECHNICAL SPECIFICATIONS
<table width="100%" class="tech_specs_table_wrapper" cellspacing="0">
<tbody><tr>
<td>
<table width="100%" class="tech_specs_table" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#FFF">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Item Type
</td>
<td width="72%">
Landscape/Outdoor Lighting Fixture
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Style
</td>
<td>In-Ground Well Light/Adjustable/Louvered</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Manufacturer
</td>
<td>CLS Outdoor Lighting</td>
</tr>
<tr bgcolor="#fefefe">
<td>Connection</td>
<td>72" Wire Lead</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Finish</td>
<td>Bronze</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Bulb Type</td>
<td>LED/Halogen (Not Included)</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Bulb Base</td>
<td>MR16</td>
</tr>
<tr bgcolor="#fefefe">
<td>Width</td>
<td>4.88"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Height</td>
<td>4.88"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Voltage Type
</td>
<td>
12V</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Other Information</td>
<td>Corrosion Resistant Non-Metallic Canister/Louvered Top</td>
</tr>
<tr bgcolor="#fefefe">
<td>Special Information</td>
<td>Anti-Moisture Connections</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Wattage</td>
<td>20 Watt Max.</td>
</tr>
<tr bgcolor="#fefefe">
<td>Construction</td>
<td>Composite/Brass/Non-Metallic Canister</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Warranty</td>
<td>Limited Lifetime Factory Warranty<br /></td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody></table>
