MORE ABOUT THIS ITEM
DESCRIPTION

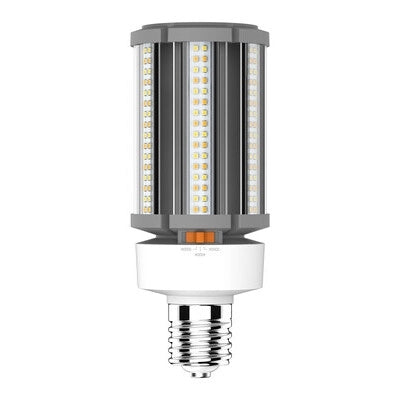

Part Number Description: LED36WPTCCTMOG-G8
Wattage - 36w
Voltage - 120-277v
Selectable CCT - 30/40/50K
Lumens - 4,800lm
Base - Mogul Screw with Long Prong (EX29)
Rated Life - 50,000 Hours
- LED replacement for high wattage HID fixtures 50w and 600w
- FieldCCet feature allows for multiple "set and forget" CCT options
- 70 watt high pressure sodium or 70 watt metal halide equivalent
- Last 3x longer than metal halide or HPS HID Lamps
- Eliminates maintenance costs for over 10 years; no expensive HID lamps or ballasts to replace
- Universal mounting position
- Integral driver; eliminates the need for external driver or ballast
- Environmentally friendly: contains no glass, mercury, or lead
- Non-dimmable
- Built-in surge protection
- 5 year factory warranty (limited)
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" cellspacing="0" width="100%">
<tbody>
<tr>
<td>
<table class="tech_specs_table" cellspacing="0" width="100%">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">Voltage Rating/Type</td>
<td width="72%">120-277/AC</td>
</tr>
<tr bgcolor="#fefefe">
<td>Burning Position</td>
<td>Universal</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Watts</td>
<td>36</td>
</tr>
<tr bgcolor="#fefefe">
<td>Lumens per Watt</td>
<td>133</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Base Type
</td>
<td>
Mogul Screw with Long Prong(EX39)</td>
</tr>
<tr bgcolor="#fefefe">
<td>Max Overall Length (MOL)</td>
<td>8.50"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Max Overall Diameter (MOD)</td>
<td>3.35"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Lumens</td>
<td>4,800lm</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Selectable CCT</td>
<td>3000K/4000K/5000K</td>
</tr>
<tr bgcolor="#fefefe">
<td>
CRI</td>
<td>>80</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Rated Life</td>
<td>50,000 Hours</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Ambient Operating Temp Range</td>
<td>-40° C (-40° F) to 60° C (140° F)</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Equivalent</td><td>70 Watt High Pressure Sodium or 70 Watt Metal Halide</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
