MORE ABOUT THIS ITEM
DESCRIPTION

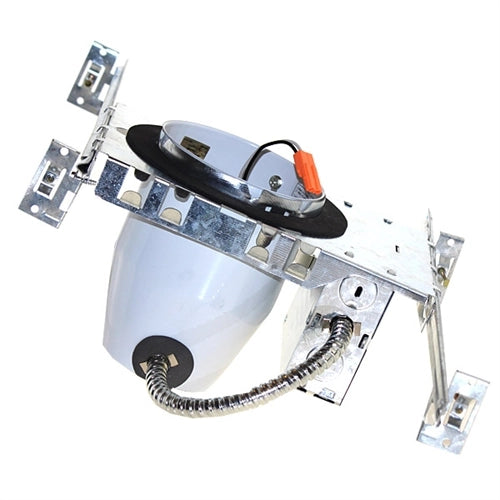

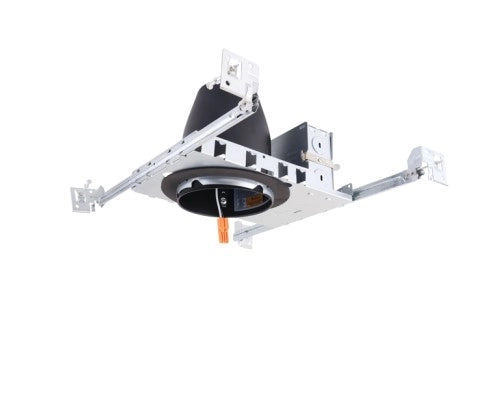

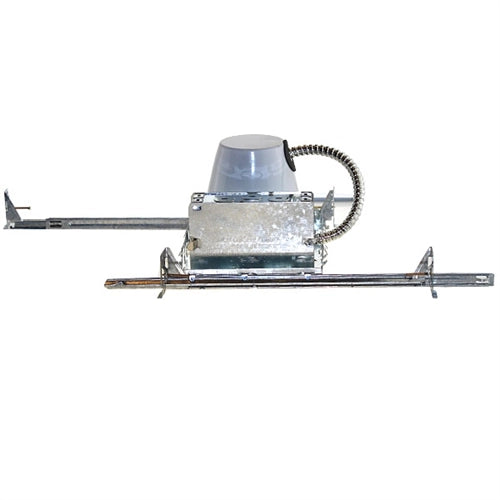

4" New Construction dedicated LED housing. Compatible with ELCO 4" LED inserts, LED modules, or PSA37 with MR16 trims.
Wattage 18w
Voltage - 120/277v
Bulb Type - LED Modules Only!
Trims Sold Separately!
- Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness
- IC Airtight for direct contact with insulation, for use in IC and non-IC applications
- Compatible with Koto Module, LED inserts and PSA37
- Dimmability based on lamp
- 5 year limited factory warranty
- Fireproof with ELCO fire resistant accessories: Sold Separately!
- UL Listed for Feed Through
- UL listed for Direct Contact with insulation and Combustible Material
- UL Listed for Damp/Wet locations with select trims
- Airtight per ASTM E-283
- CA JA8 Title 24 compliant

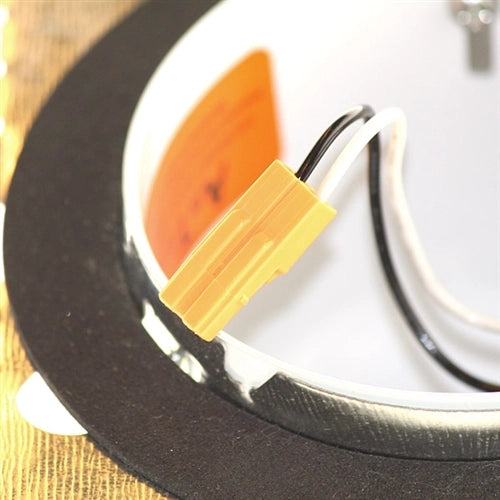

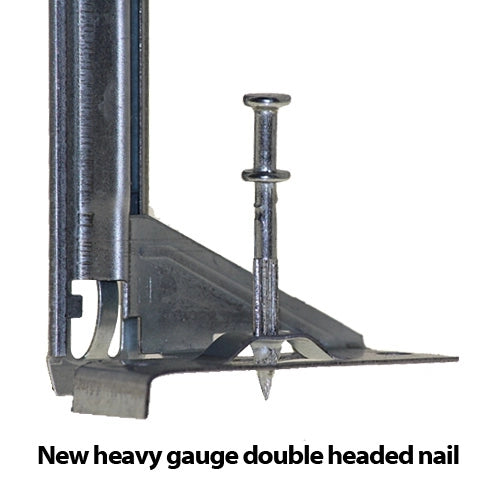

<span style="font-weight: bold;"><br /></span>Bulb Type: <span style="color: rgb(192, 80, 77);"><b>LED MODULES - PLUG JACK ONLY </b></span><br /><br />Housing <br />▪ Single wall painted steel housing gasket for Insulation Compliant and Air tight in insulated ceiling (IC/AT)<br />▪ Housing can be adjusted for ceiling thickness up to 1"<br />▪ Heavy gauge double head nail for easy removal and strength<br /><br />Junction Box <br />▪ Listed for through branch circuit wiring<br />▪ Contains (1) 1-1/8" and (6) 7/8" knockouts and four Romex pryouts with Romex strain relief<br />▪ Ground wire provided on J-Box <br /><br />Hanger Bars / New Construction<br />▪ Pre-installed double headed, heavy gauge nail easily installs in regular lumber or engineered lumber.<br />▪ Hanger bars are adjustable from 13-5/8" to 25" and can be repositioned 90 degrees <br /><br />Mounting Frame / New Construction<br />▪ Galvanized steel construction <br /><br />Quick Connect "Push in Terminal"<br />▪ 4 port "Quick connector" for fast and easy wiring.<br /><br />Easy Plug Jack Connector<br />▪ Allows for simple installation of LED Modules, and ensures safe and efficient installation of LED components<br /><br />Listing<br />▪ c UL US<br />▪ Energy Star and California Title 24 Compliance<br />▪ The unique "Easy Plug Jack Connector" system also meets other state and national regulatory mandates<br />
TECHNICAL SPECIFICATIONS
<table width="100%" class="tech_specs_table_wrapper" cellspacing="0">
<tbody>
<tr>
<td>
<table width="100%" class="tech_specs_table" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Material
</td>
<td width="72%">
Galvanized Steel
</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Construction Type
</td>
<td>
New</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Bar Hangers</td>
<td>
12" - 25.5" joist span</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Adjustable
</td>
<td>
Vertical</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Knockouts
</td>
<td>(6) 7/8" and (1) 1 1/8"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Approval Type</td>
<td>
C-UL - Damp location, C-UL - Feed-through wiring
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Recessed Size</td>
<td>
4 Inch
</td>
</tr>

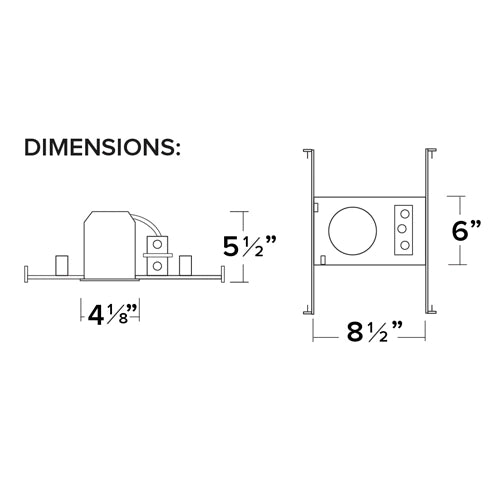

<tr bgcolor="#fefefe">
<td>
Length</td>
<td>
8.5"</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Width</td>
<td>
6"</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Height
</td>
<td>
5.5"</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
SHIPPING
Estimated Ground Shipment Times
Orders must be placed by 3pm PST for same-day shipping
REVIEWS
- 5 stars: 25 (89%)
- 4 stars: 1 (4%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 2 (7%)
Been working with you guys for years. Service and product has always been first class
Always an excellent experience.
I buy all the time from usalight bc their products are very good quality. Shipping on time and best prices!
Thanks for your service.
Wiring my new house and chose these for the kitchen. They mount easily. My trusses are only 11.5" apart and the braces have a snap off to allow you to shorten them and still preserve the easy slide feature. If you opt for the 1/2" knock out instead of the captive NM openings, you'll need to supply your own cable clamps (plastic snap in works great). Can't comment yet on the light as I am months away from adding the trims.
Quick deliver.y, good quality product, installed without issue
Spent more than I thought because I had to order everything separate and thought it was all in one. Plus set me back on a job a week. Customer service didn’t offer any support when I called. Very disappointed
My husband handled the installation of the new construction ic airtight and said it was one of the easiest fixtures he has put in. The housing is made from quality materials and feels noticeably more premium than comparable products. Five stars without any hesitation - buy it.
My husband handled the installation of the new construction ic airtight and said it was one of the easiest fixtures he has put in. The housing is made from quality materials and feels noticeably more premium than comparable products. Five stars without any hesitation - buy it.
This light fixture works great for what we need to light up our guest room bathroom alot more.
Thanks
This is a solid product, very well built.
fast.very good!
Excellent Product and compliant with NEC code.
New construction 4" recessed lights: accurate website that is easy to navigate. Fast shipping. Easy install and quality product for the price. I have used many of USA lighting products and all have exceeded my expectations.
You guys are awesome.
Good product, great service.
Look forward to working with you in the future.
Superb service. Got free shipping and product delivered in one day! Far better then Amazon....
Great value for the product
Great product. Well made. Great price.
Safe, secure packaging and quick delivery!!!!
Great housings, just installed 38 of these in a remodel, comparable to what the home centers are selling for twice the price. Nice that the led quick connects are on them so you don't have to try to stuff the e26 adapter above the light.
Ordered through Internet and phone and company was very professional to deal with. The 4" cans are the best I have found for this price. The construction and electrical connections are of very high quality. This is the only place I have found after a long time of research that has this high of a quality 4" can. I was very surprised at getting something that is this well built at this price. You wont be disappointed.
used these several times, great product, great price.
These housing units are perfect for our remodel/new construction. We were digging around all over as we needed almost 80 of them, and found these for almost half the cost. Customer service was great and assured me we had what we were looking for. Delivery was right on time. Will definitely be back for more.
We ordered quite a few LED lights, and they came really fast, and were packaged well.
Will order again.
Thanks!
Nice quality Great price.
As always this company does an awesome job of helping you out with getting what you need. I have ordered 16 of these items for my kitchen. Easy install and the quick connects makes things very simple. Always come here first when doing lighting work around the house.
Thanks !!!
I just received 50 of these lights and the quality combined with the fact that they are half the price of cans sourced locally makes it a no brainer. Shipping was fast and I will buy again without a doubt. I'm a serious shopper and usalight had the best price and shipping terms by far.
Sorry to say, these 4" cans were not well made at all. The brackets bent too easily and the included installation nails were thin are unusable. You get what you pay for.
I am a contractor. David at USAlight was very helpful in directing me to the right product and keep me updated on shipment and delivery, which is very important when you are busy.
