MORE ABOUT THIS ITEM
DESCRIPTION
Works with 2", 3", 4", & 6" Recessed Housings and Koto Trims.
Triac/ELV Dimmable
Wattage - 10w
Voltage - 120v
Lumens - 940lm
Beam Angle - 38°
CRI - 95
Finish - Black

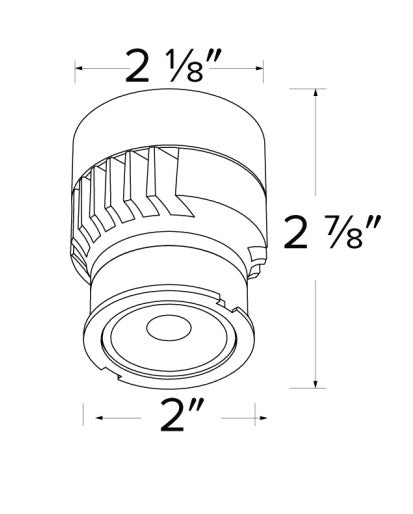

Base Diameter - 2 1/8"
Height - 2 7/8"
Lens Diameter - 2"

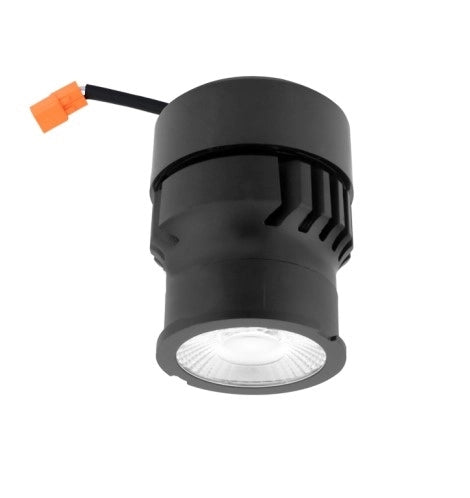

Master the art of ambiance with the ELCO ELK09SD Kotoâ„¢ LED Module, featuring innovative Sunset Dimming technology. This 10W module provides a unique experience by warming the color temperature from 3000K down to a rich 1800K as you dim the lights. It is widely considered the best recessed lighting for those who want to recreate the soft, comforting glow of an evening sunset. Common uses for this module include high-end residential theaters, intimate dining rooms, and luxury master suites where mood control is vital.
- Sunset Module (ELK09SD & ELK11SD) starts from 3000K and dims to 1800K
- Integrated 120V dimmable driver Triac/ELV
- Excellent color rendering 95+ CRI
- Works in 2", 3", 4", 6" ELCO Housings with Koto twist-&-lock trims

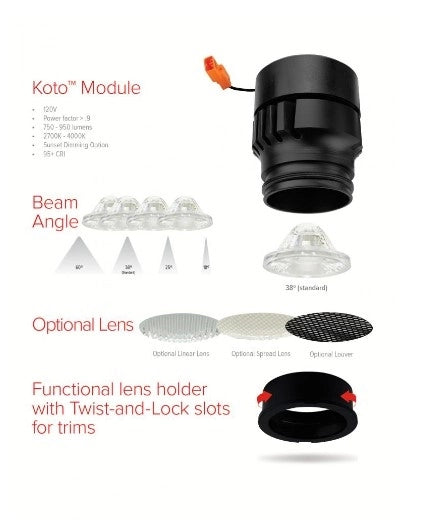

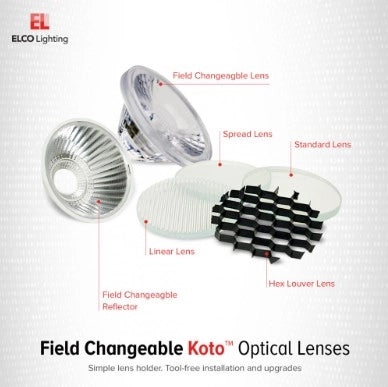

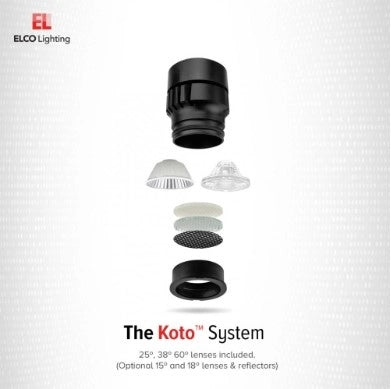

- Standard 38° Lens installed, 25° and 60° lens included with each module
- Optional Lens: 18° (EP731C)

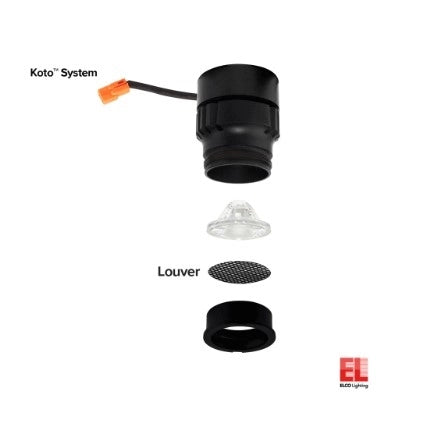

- Optional: Louver (L45), Linear Lens (L46), Spread Lens (L47), Clear Lens (L48), Frosted Lens (L49), Color Shifter (L50)
- Covered by U.S. Patents and Patents Pending; Please note this will NOT replace static color temperature Koto modules
- 5 year factory warranty (limited)
- UL Listed Damp Location, UL Listed w/Wet Location Trims
- Energy Star Certified, Title 24 JA8-2019 Compliant
<p style="background-color: rgb(255, 255, 255);">
</p>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Features</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>Optics: Frosted polycarbonate module lens diffuses light evenly throughout while reducing glare with LED technology</li>
<li>Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat fins allows for efficient cooling</li>

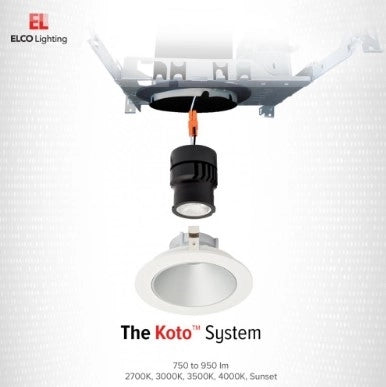

<li>Installation: Twist-lock design for tool-less trim installation, for use with Koto trims only. Can be used in 2", 3", 4", & 6" housings with quick connect base</li>
<li>Electrical: Module connects to 120 power supply. High efficiency driver with a power factor >0.9. Start time of less than 0.75 seconds</li>
<li>Delivered Lumens: Up to 940LM/SunsetK. Works with 120V Triac/ELV type dimmers. Industry leading dimming that dims smoothly with no hot spots or flickering</li>
<li>LED Technology: Extremely accurate color rendering index of 95+. Lumen maintenance of 50,000 hours L70 life based on LM80 standardized test results</li><li>Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. ELCO's SUNSET items start at 3000K and go as low as 1800K when dimmed. For Sunset dim technology be sure to order an item with "Sunset" in the color temperature (CCT) attribute.</li>
<li>Superior Thermal Management by utilizing integrated heat sink. Instant on to full brightness technology. No LED Pixilation.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Listings</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>UL Listed for Damp Location. UL Listed w/Wet Location Trims</li>
<li>Energy Star Certified. Title 24 JA8-2019 Compliant.</li>
</ul>
<div style="width: 100%; height: 1px; clear: both; background-color: rgb(255, 255, 255);">
</div>
<p style="background-color: rgb(255, 255, 255);">
</p>
<span style="font-weight: bold;">Specifications</span>
<ul style="background-color: rgb(255, 255, 255);">
<li>10 Watts</li>
<li>940 Lumens</li>
<li>Black</li>
<li>95+ CRI</li>
</ul>
TECHNICAL SPECIFICATIONS
<table class="tech_specs_table_wrapper" width="100%" cellspacing="0">
<tbody>
<tr>
<td>
<table class="tech_specs_table" width="100%" cellspacing="0">
<tbody>
<tr>
<th colspan="2" bgcolor="#f0f0f0" align="left">
Tech Specs
</th>
</tr>
<tr>
</tr>
<tr bgcolor="#fefefe">
<td>
</td>
<td>
</td>
</tr>
<tr bgcolor="#f0f0f0">
<td width="28%">
Dimmable
</td>
<td width="72%">
Yes/Triac/ELV</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Item Type
</td>
<td>LED Recessed Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>
Item Style
</td>
<td>Koto LED Module</td>
</tr>
<tr bgcolor="#fefefe">
<td>
Manufacturer</td><td>ELCO Lighting</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>CRI</td><td>95+</td>
</tr>
<tr bgcolor="#fefefe">
<td>Finish</td>
<td>Black</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Lumens</td>
<td>940LM</td>
</tr>
<tr bgcolor="#fefefe">
<td>Wattage</td>
<td>10 Watts</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Beam Angle</td>
<td>38°<br /></td>
</tr>
<tr bgcolor="#fefefe">
<td>Listed</td>
<td>Damp Location/Wet Locations with Select Trims</td>
</tr>
<tr bgcolor="#f0f0f0">
<td>Color Temperature
</td>
<td>SunsetK</td>
</tr>
<tr bgcolor="#fefefe">
<td>Warranty</td>
<td>5 Year Factory Warranty (limited)</td>
</tr>
</tbody>
</table>
</td>
</tr>
</tbody>
</table>
